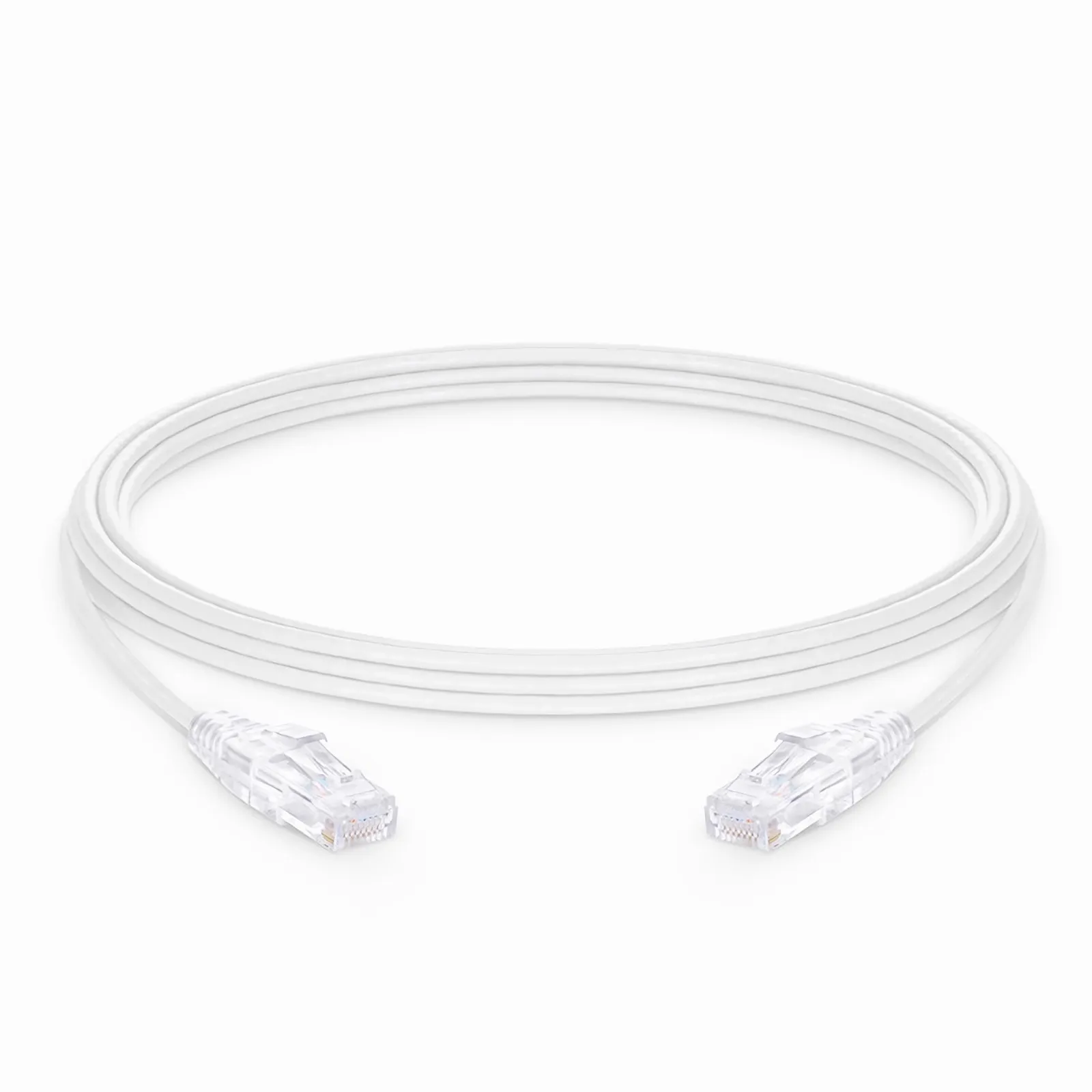

D-Link 1M Cat6A 10G UTP 24 AWG PVC Round Patch Cord White (NCB-6AUWHIR1-1)
The D-Link 1M Cat6A 10G UTP Patch Cord is a 1-meter, 4-pair unshielded twisted pair cable built to support 10 Gigabit Ethernet speeds over short structured cabling runs. It uses 24 AWG bare copper conductors, HD-PE insulation, and a PVC UL94V-0 jacket rated for 75°C minimum heat resistance, a step up from standard Cat6 cords. The cable terminates in RJ-45 8P transparent connectors with 30-microinch gold plating and phosphor bronze contact blades, giving a stable, low-resistance connection built for 750 mate/demate cycles. Its clean white jacket blends into most office and home environments while signaling a higher-spec, future-ready cabling standard. This cord fits data centers, server racks, and network upgrades in Nairobi where higher bandwidth and shorter latency matter.
Key Features
- Cat6A 10G-rated performance, built for higher bandwidth and reduced crosstalk versus standard Cat6
- 24 AWG bare copper conductors with HD-PE insulation for consistent signal quality
- 75°C minimum heat resistance, higher than standard Cat6 patch cords for demanding cabinet environments
- Gold-plated RJ-45 8P connectors (30U”) with phosphor bronze contact blades for a durable, low-loss connection
- 750 mate/demate cycle durability rating, suited to frequent reconnection in server and rack setups
Technical Specifications
| Specification | Detail |
|---|---|
| Cable Construction | 4 Pairs Unshielded Twisted Pair (UTP) |
| Conductor Metal | Bare Copper |
| Conductor Size | 24 AWG |
| Insulation Material | HD-PE |
| Jacket Material | PVC UL94V-0 |
| Heat Resistance | 75°C minimum |
| Connector Type | RJ-45 8P, transparent housing |
| Contact Plating | Gold plated, 30 microinches |
| Contact Blade Material | Phosphor Bronze |
| Operating Temperature Range | -20°C to 80°C |
| Dielectric Voltage Withstanding | 500V AC |
| Insulation Resistance | 35M Ohm (max.) |
| Durability | 750 matching (mate/demate) cycles |
| Cable-to-Plug Tensile Strength | 20 lbs (89N) minimum |
| Cable Length | 1 meter |
| Cable Category | Cat6A UTP (10G-rated) |
| Color | White |
Who This Cable Is Best Suited For
- Data center and server room technicians needing short, high-bandwidth links between switches, patch panels, and racked servers
- Businesses upgrading to 10 Gigabit Ethernet infrastructure, where standard Cat6 no longer meets throughput needs
- IT installers working in visible or mixed-decor spaces, where a white cable blends cleanly into office trunking and wall-mounted setups
