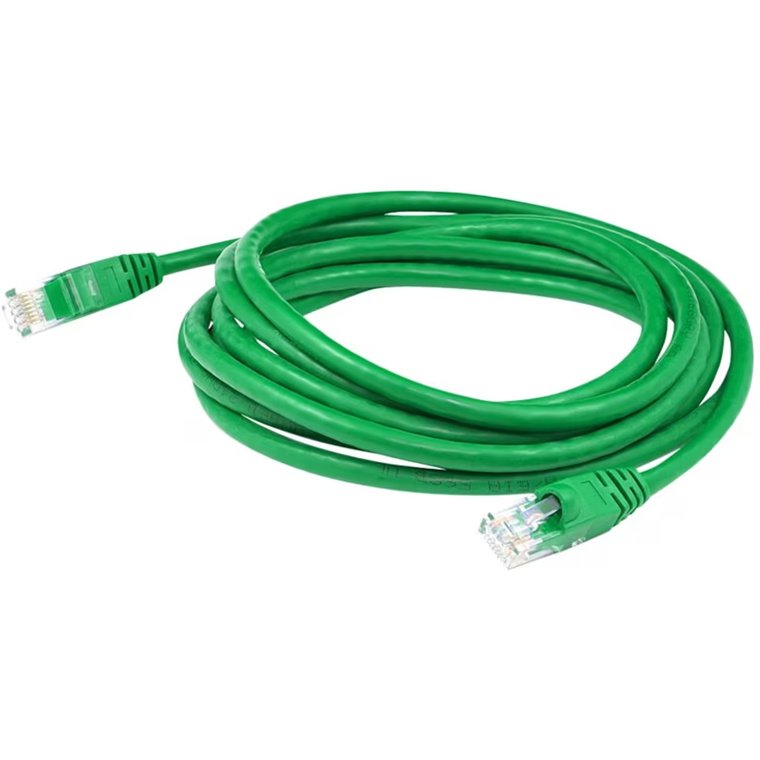

D-Link 3M CAT6 UTP Green Patch Cord (NCB-C6UGRNR1-3)
The D-Link 3M CAT6 UTP Green Patch Cord is a 3-meter (9.84 ft) unshielded twisted pair network cable built for Gigabit Ethernet connections that need extra reach, such as linking a router to a device across a room or a switch to a workstation in an adjoining space. It’s constructed with 4 pairs of 24 AWG solid copper conductors, HD-PE insulation, and a round PVC UL94V-0 jacket. The cable terminates in RJ-45 8P transparent connectors with 30-microinch gold plating and phosphor bronze contact blades, and is rated for 750 mate/demate cycles. It carries UL 444, UL 758 Style 2835, and UL 1581 certification, along with TIA/EIA-568C.2 compliance verified by ETL, cUL listing, and RoHS compliance. The green PVC jacket stands out clearly in a cable run or patch panel, helping with quick visual identification. This length suits home offices, small business setups, and network racks across Nairobi where a short desk-to-wall or rack-to-device connection isn’t quite long enough.
Key Features
- 3-meter length for Gigabit Ethernet links needing more reach than a standard 1M patch cord
- 24 AWG solid copper conductors across 4 twisted pairs for stable, low-loss signal transmission
- Gold-plated RJ-45 8P connectors (30U”) with phosphor bronze contact blades for durable connections
- UL 444, UL 758, and UL 1581 certified, with TIA/EIA-568C.2 compliance verified by ETL and cUL listing
- 750 mate/demate cycle durability rating, built for repeated reconnection without degrading performance
Technical Specifications
| Specification | Detail |
|---|---|
| Model | NCB-C6UGRNR1-3 |
| Cable Type | Cat6 UTP (Unshielded Twisted Pair) Patch Cable |
| Length | 3 meters (9.84 feet) |
| Connector Type | RJ-45 8P connectors on both ends, transparent housing |
| Contact Plating | Gold plated, 30 microinches |
| Contact Blade Material | Phosphor Bronze |
| Jacket Material | PVC UL94V-0 |
| Conductor Material | Solid Bare Copper |
| Conductor Gauge | 24 AWG |
| Pair Count | 4 pairs |
| Insulation Material | HD-PE |
| Color | Green |
| Performance Category | Cat6 |
| Data Transmission Speed | Up to 1000 Mbps (Gigabit Ethernet) |
| Cable Design | Round |
| Shielding | U/UTP (Unshielded Twisted Pair) |
| Operating Temperature Range | -10°C to 80°C |
| Dielectric Voltage Withstanding | 500V AC |
| Insulation Resistance | 35M Ohm (max.) |
| Durability | 750 matching (mate/demate) cycles |
| Cable-to-Plug Tensile Strength | 20 lbs (89N) minimum |
| UL Rating | 250V AC, 2A (max.) |
| Certifications | UL 444, UL 758 Style 2835, UL 1581, TIA/EIA-568C.2 (ETL verified), cUL listed, RoHS |
Who This Cable Is Best Suited For
- Home network users needing a Gigabit link that spans a bit further, such as router-to-TV or router-to-desk connections across a room
- Small offices and shops in Nairobi wiring a switch to a workstation, POS terminal, or printer that sits a few meters away
- Network technicians building color-coded cable runs, using the 3-meter length to bridge patch panels, racks, or wall outlets to nearby equipment
