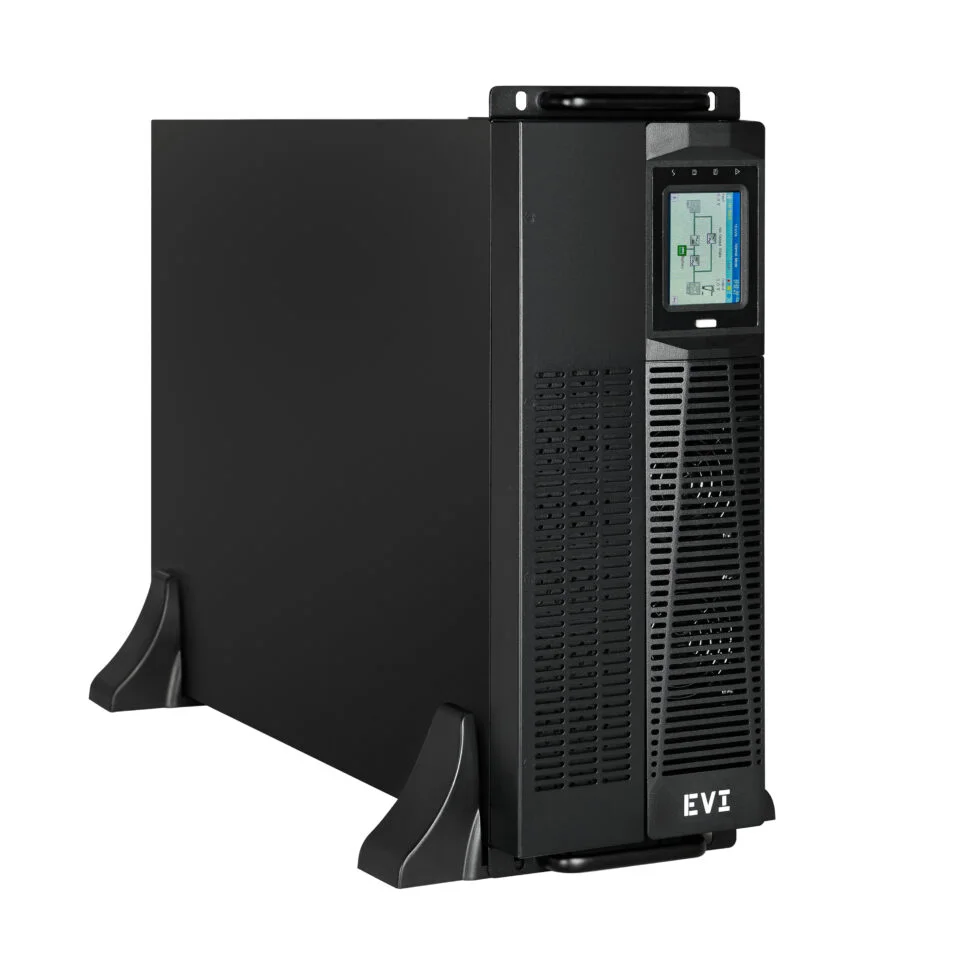

EVI 6000VA / 6000W Rack Mount Online Single Phase UPS
A genuinely well-equipped server room doesn’t always need 10,000 watts of protection to justify flagship-tier features. Many mid-sized data centers, banking branches, and telecom facilities need the full suite of enterprise monitoring, connectivity, and battery intelligence that top-tier UPS units offer — just scaled to a 6000W load rather than 10,000W. The EVI 6000VA / 6000W Rack Mount Online Single Phase UPS (EP-UPS6000P11OR) delivers exactly that: the same flagship 4U rack-mount architecture as EVI’s larger 10kVA model, at a capacity and price point matched to genuinely mid-sized enterprise deployments.
This is a true online double-conversion UPS with a full 1.0 output power factor, meaning every one of its rated 6000 watts is available as real, usable power — not a marketing number that shrinks once connected equipment is actually plugged in.
Full 1.0 Output Power Factor: 6000VA Really Means 6000W
Unlike many UPS units where VA and watt ratings diverge significantly due to lower power factor design, the EP-UPS6000P11OR delivers a full 1.0 output power factor, meaning the entire 6000VA rating translates directly into 6000W of genuine usable capacity. For a server room, banking hall, or telecom facility sizing equipment loads carefully, this distinction removes the guesswork: the number on the specification sheet is the number available to connected equipment.
Continuous online double-conversion technology delivers pure sine wave output with zero typical transfer time — both between AC mode and battery mode, and on inverter bypass — ensuring connected servers, storage systems, and networking equipment never experience even a millisecond of interruption regardless of what happens on the grid side.
Wide Input Tolerance with Terminal-Wired Input Connection
Operating across a wide input voltage range of 110 to 300 Vac with input power factor correction (PFC) rated at 0.99, the EP-UPS6000P11OR absorbs significant grid instability without unnecessarily switching to battery power. A dedicated terminal input connection (Live, Neutral, Ground) supports permanent, hardwired installation suited to professional data center and telecom electrical rooms, rather than relying on a standard plug connection sized for lighter-duty equipment.
Serious Battery Engineering: 16 x 7Ah Batteries at 192V
The EP-UPS6000P11OR runs on 16 x 7Ah lead-acid batteries configured at 192V, with an external battery connector available for facilities that need extended runtime beyond the standard internal configuration. A maximum charge current of 12A, combined with smart battery charging design, optimizes charge cycles to extend battery service life and reduce the frequency of costly battery bank replacements over the unit’s operating life.
The Same Enterprise Monitoring Suite as EVI’s Flagship Model
Despite sitting below EVI’s 10kVA unit in raw capacity, the EP-UPS6000P11OR carries the identical enterprise monitoring and connectivity suite:
- 3.5 inch touch screen for at-a-glance status monitoring
- USB, RS232, and RS485 ports for direct and networked monitoring integration
- Parallel port for future capacity expansion configurations
- Intelligent card slot for optional SNMP network management cards
- Emergency Power Off (EPO) function for immediate, safe shutdown
- Maintenance bypass dry contact (MAINT.) for safe servicing without disrupting connected loads
- Programmable dry contact port, expandable to 4 inputs and 4 outputs, for custom automation workflows
- Optional Battery Temperature Contact port (BATT) for advanced battery health monitoring
This means a facility choosing the 6000W model over the 10000W flagship isn’t sacrificing monitoring sophistication or connectivity — only raw capacity that may simply not be needed yet.
Generator Compatible with ECO Mode Efficiency
Full generator compatibility ensures reliable operation alongside backup generators during startup and load transition periods, while ECO mode allows the unit to run in a higher-efficiency state during stable grid conditions, reducing energy consumption without sacrificing the ability to switch instantly back to full double-conversion protection when needed.
Selectable Output Voltage and Flexible Outlet Configuration
Selectable output voltage across 200, 208, 220, 230, and 240 Vac allows the unit to adapt to regional equipment requirements. Outlet configuration includes two C19 and three C13 connectors, covering high-draw server power supplies alongside standard networking and peripheral equipment without requiring a drawer full of adapters.
Compact 4U Rack Mount Design with Tower Conversion Included
Like its larger sibling, the EP-UPS6000P11OR fits a compact 4U rack mount footprint, with tower conversion stands included for installations without standard rack infrastructure. This gives the same installation flexibility whether the unit lives in a 19-inch server rack or stands independently in a comms room or back office.
The Practical Case for Right-Sizing Within the Flagship Range
A facility that specifies the 10kVA flagship model when its actual load sits closer to 6000W pays for headroom it may not use for years, while a facility that undersizes into a lower-tier product line loses access to the enterprise monitoring and connectivity features that a genuinely mission-critical deployment needs. The EP-UPS6000P11OR resolves this trade-off directly, delivering the full flagship feature set at a capacity genuinely matched to mid-sized enterprise loads.
Backed by Confidence: 2-Year Warranty, 1-Year Battery Coverage
The EVI 6000VA / 6000W Rack Mount Online UPS ships with the same 2-year manufacturer warranty and 1-year battery warranty as EVI’s larger flagship model, reflecting identical manufacturer confidence in build quality regardless of which capacity tier a facility selects.
Perfect For
- Mid-sized data centers and server rooms requiring flagship-tier monitoring at a matched capacity
- Banking halls and financial branches processing time-sensitive transactions
- Telecom distribution facilities requiring hardwired, terminal-connected UPS installation
- Hospitals and diagnostic labs running mid-scale imaging and monitoring equipment
- Growing ISPs and network operators needing full enterprise connectivity without 10kVA capacity
- Manufacturing facilities running mid-sized PLCs, CNC equipment, and control systems
- Government offices and county infrastructure requiring reliable, monitored power for critical systems
- Universities and research institutions protecting mid-scale laboratory and IT investments
- Hotels and hospitality operations safeguarding reservation, security, and guest-facing technology
- Businesses that want the same feature set as EVI’s flagship 10kVA model at a genuinely matched capacity
