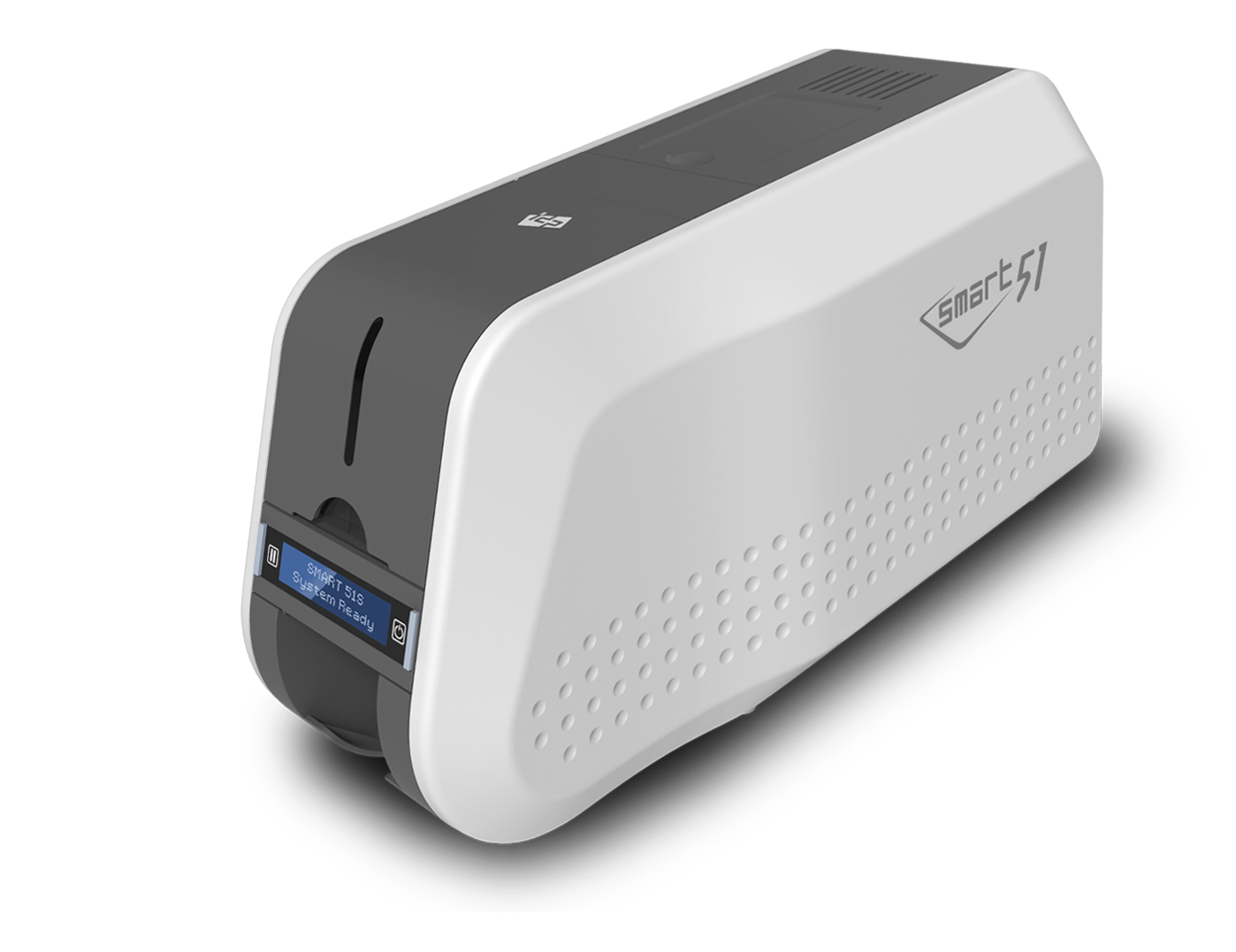

IDP Smart 51 S
The IDP Smart 51 S is a single-sided ID card printer from the Smart 51 series, designed for organisations that issue plastic cards in volume. Using direct dye-sublimation printing, the Smart 51 S produces edge-to-edge, photo-quality cards for staff IDs, membership and access cards.
Overview
The Smart 51 S prints full colour at 300 dpi, and at 600 or 1200 dpi for monochrome detail. Thanks to an automatic 100-card input hopper and rated speeds of up to 720 monochrome or 212 colour cards per hour, the Smart 51 S keeps card issuance moving. Furthermore, it connects over USB and Ethernet, and it can be fitted with optional magnetic-stripe or smart-card encoders as needs grow.
Best Suited For
- Schools, gyms, clubs and companies — the Smart 51 S issues single-sided student, member and staff IDs at a low per-card cost.
- Medium to high volumes — the 100-card hopper and up to 720 cards/hour throughput suit batch printing.
- Future encoding needs — optional magnetic-stripe and smart-card encoders can be added to the Smart 51 S later.
Printing
- Print method: direct dye-sublimation
- Print mode: single-sided
- Print area: edge to edge
- Resolution: 300 dpi colour; 600/1200 dpi monochrome
Card Handling
- Card feeding: automatic
- Input hopper: 100 cards (200 with cover open)
- Output hopper: 40 cards front / 100 cards rear (optional rear stacker)
- Card size: ISO CR80 (CR79 optional)
- Card thickness: 0.38 mm (15 mil) – 1.0 mm (40 mil)
- Card types: PVC, PET, composite PVC
Print Speed
- Monochrome: ~5 sec/card (up to 720 cards/hour)
- Colour (YMCKO): up to 17 sec/card (212 cards/hour)
- Colour + overlay (YMCKOK): up to 22 sec/card (164 cards/hour)
System & Connectivity
- Memory: 64 MB RAM
- Control: 2-line LCD with 2 LED buttons
- Supported platforms: Windows 7/8/10, macOS, Linux
- Connectivity: USB and Ethernet (Wi-Fi optional)
- Power: free-voltage AC 100–240V, 50/60 Hz (approx. 96 W)
- Optional encoders: magnetic stripe and contact/contactless smart card
