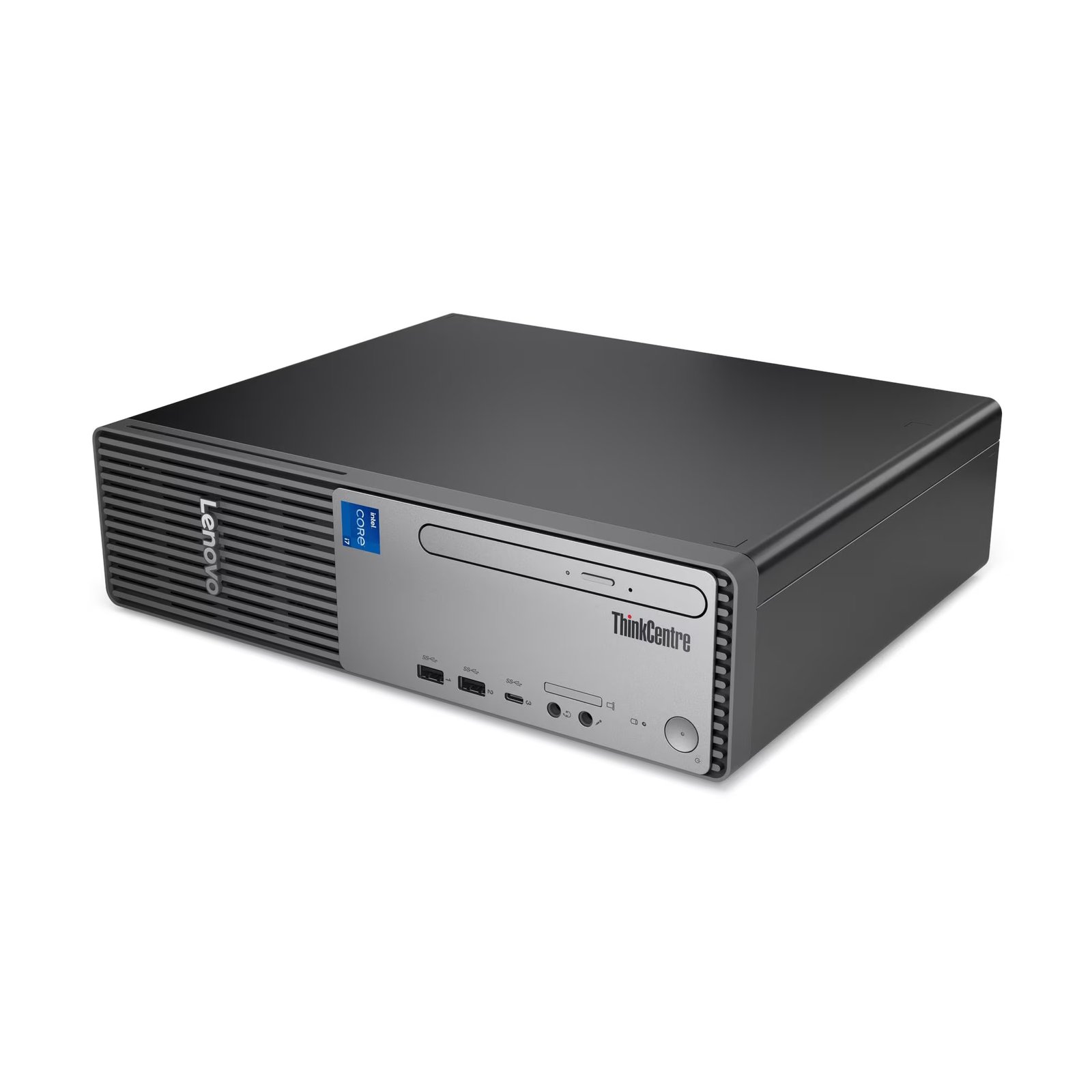

Lenovo ThinkCentre Neo 50s Gen 5 SFF, Core i7 14700 (14th Gen), 8GB DDR5, 512GB SSD
The Lenovo ThinkCentre Neo 50s Gen 5 SFF delivers substantial desktop-class performance in a compact small-form-factor chassis, powered by the Intel Core i7-14700 processor, a 20-core (8P + 12E), 28-thread desktop chip with Max Turbo speeds up to 5.4 GHz and a substantial 33MB Intel Smart Cache. Built on the Intel B760 chipset, it comes with 8GB of DDR5-5600 memory and a 512GB PCIe 4.0 NVMe SSD with Opal 2.0 hardware encryption, alongside an empty second DIMM slot and support for a second internal 3.5″ HDD. Integrated Intel UHD Graphics 770 handle everyday business visual tasks. A 3-in-1 card reader adds convenient media support not found on the entry-level Neo 30s, while connectivity includes a USB-C port with 15W charging, front and rear USB-A ports, HDMI 2.1, DisplayPort 1.4, and VGA for legacy display support. Housed in a compact 8.2-litre SFF chassis at just 4.2 kg, the Neo 50s pairs strong processing power with discrete TPM 2.0 (TCG and FIPS 140-2 certified) security and a chassis intrusion switch for enhanced physical security. Backed by TCO Certified generation 9 sustainability credentials, this configuration ships with no operating system and includes a USB keyboard and mouse, plus a bundled Slim ODD Bracket Kit.
Key Features
- Intel Core i7-14700 desktop processor with 20 cores, 28 threads, and Max Turbo speeds up to 5.4 GHz
- 512GB PCIe 4.0 NVMe SSD with Opal 2.0 encryption, plus support for an additional internal 3.5″ HDD
- Discrete TPM 2.0 (TCG, FIPS 140-2 certified) with chassis intrusion switch, enhancing both data and physical security
- 3-in-1 card reader, a convenient addition not found on entry-level SFF models
- Compact 8.2L SFF chassis at just 4.2 kg, with VGA support for legacy display connectivity
Technical Specifications
| Specification | Details |
|---|---|
| Processor | Intel Core i7-14700, 20 cores (8P+12E), 28 threads, up to 5.4 GHz Max Turbo, 33MB Smart Cache |
| Chipset | Intel B760 |
| Operating System | None (No OS) |
| Graphics | Integrated Intel UHD Graphics 770 |
| Memory | 8GB DDR5-5600 (1x UDIMM), dual-channel capable, expandable to 64GB |
| Storage | 512GB M.2 2280 PCIe 4.0 x4 NVMe SSD with Opal 2.0 encryption; supports up to 1x 3.5″ HDD (2TB) as second drive |
| Expansion Slots | 1x PCIe 3.0 x16 (low-profile), 1x PCIe 3.0 x1 (low-profile), 2x M.2 (1 WLAN, 1 SSD) |
| Form Factor | SFF (8.2L) |
| Chassis Color | Black chassis, Grey bezel |
| Card Reader | 3-in-1 card reader |
| Keyboard/Mouse | USB Calliope Keyboard and Mouse |
| Ports (Front) | 1x USB-C (5Gbps, 15W charging), 2x USB-A (5Gbps), 1x headphone/mic combo, 1x microphone jack |
| Ports (Rear) | 4x USB-A (2.0, 1 Smart Power On), 1x HDMI 2.1, 1x DisplayPort 1.4, 1x VGA, 1x Ethernet (RJ-45), 1x line-out |
| Wireless | Intel Wi-Fi 6 AX201 (2×2) and Bluetooth 5.2 |
| Network | Integrated 100/1000M Ethernet |
| Security | Discrete TPM 2.0 (TCG, FIPS 140-2 certified), Kensington Security Slot, chassis intrusion switch |
| Power Supply | 260W, 90% efficiency |
| Dimensions | 92.5 x 291.4 x 339.5 mm |
| Weight | Approximately 4.2 kg (9.3 lb) |
| Certifications | TCO Certified generation 9, RoHS/WEEE/REACH |
| Warranty | 1-year (3-year Courier/Carry-in upgrade available) |
| Bundled Accessories | Slim ODD Bracket Kit |
Best Suited For
- Businesses needing strong processing power in a compact chassis, benefiting from the 20-core i7-14700 in an 8.2L form factor
- Organizations handling sensitive data, thanks to FIPS 140-2 certified TPM, Opal 2.0 SSD encryption, and a chassis intrusion switch
- Offices with legacy display requirements, supported by the included VGA port alongside modern HDMI and DisplayPort
