Logitech Rally Mounting Kit (939-001644)
The Logitech Rally Mounting Kit provides a complete set of brackets and hardware for a clean, professional installation of the Logitech Rally or Rally Plus video conferencing system. Its invertible camera bracket allows the Rally camera to be wall-mounted directly above or below the display for natural eye contact with remote participants, or flipped to a near-ceiling position for a wider view in larger rooms, with a tripod screw and three-point pin system keeping the camera steady even while panning or zooming. Low-profile speaker brackets mount the speakers directly to the wall for a clean, “floating” appearance, while ventilated hub brackets allow the table hub and display hub to be secured under a table or on a wall without trapping heat. Cable retention brackets keep connections secure and prevent accidental disconnection, giving the entire installation a tidy, professional finish. The kit includes two speaker brackets, one camera bracket, one table hub bracket, one display hub bracket, and two cable retainers, along with the necessary fasteners and documentation. It’s backed by a 2-year limited hardware warranty, and is designed specifically for Logitech Rally systems, not the standalone USB Rally Camera, which uses a different mounting system.
Key Features
- Invertible camera bracket — mount above/below the display or invert for near-ceiling installations
- Low-profile speaker brackets — clean, “floating” wall-mounted appearance
- Ventilated hub brackets — secure the table hub and display hub without trapping heat
- Cable retention brackets — keep connections secure for a tidy, professional look
- Complete kit — includes all brackets, fasteners, and hardware needed for a full Rally installation
Technical Specifications
| Component | Height | Width | Depth |
|---|---|---|---|
| Speaker Bracket | 1.42 in (36 mm) | 10.47 in (266 mm) | 0.31 in (8 mm) |
| Camera Bracket | 2.48 in (63 mm) | 4.29 in (109 mm) | 6.54 in (166 mm) |
| Table Hub Bracket | 0.47 in (12 mm) | 6.46 in (164 mm) | 4.53 in (115 mm) |
| Display Hub Bracket | 0.47 in (12 mm) | 6.46 in (164 mm) | 4.53 in (115 mm) |
| Cable Retainer | 0.91 in (23 mm) | 6.46 in (164 mm) | 1.5 in (38 mm) |
| Additional Specification | Details |
|---|---|

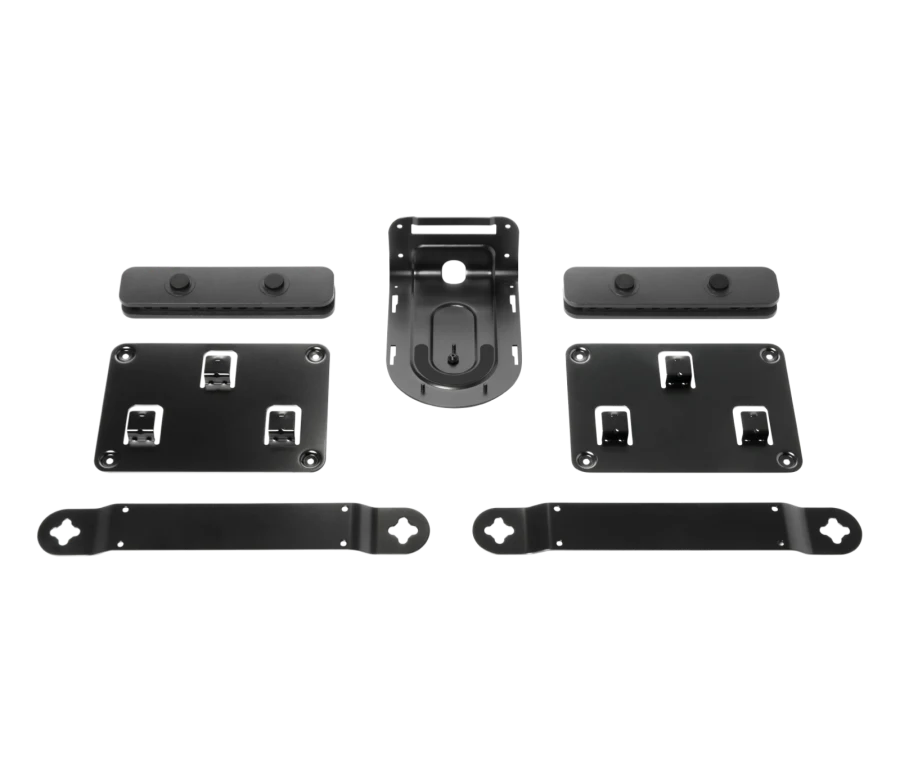

| Package Contents | 2 Speaker brackets, 1 Camera bracket, 1 Table hub bracket, 1 Display hub bracket, 2 Cable retainers, fasteners, documentation |
| System Requirements | Logitech Rally or Logitech Rally Plus |
| Compatibility Note | Not compatible with standalone USB Rally Camera (uses a different mount) |
| Warranty | 2-Year Limited Hardware Warranty |
| Part Number | 939-001644 |
Best Suited For
- Conference rooms wanting a clean, wall-mounted installation rather than tabletop placement for cameras and speakers
- Larger meeting spaces, since the invertible camera bracket supports near-ceiling mounting for a wider view
- AV installers seeking a complete hardware bundle, avoiding the need to source brackets and fasteners separately
