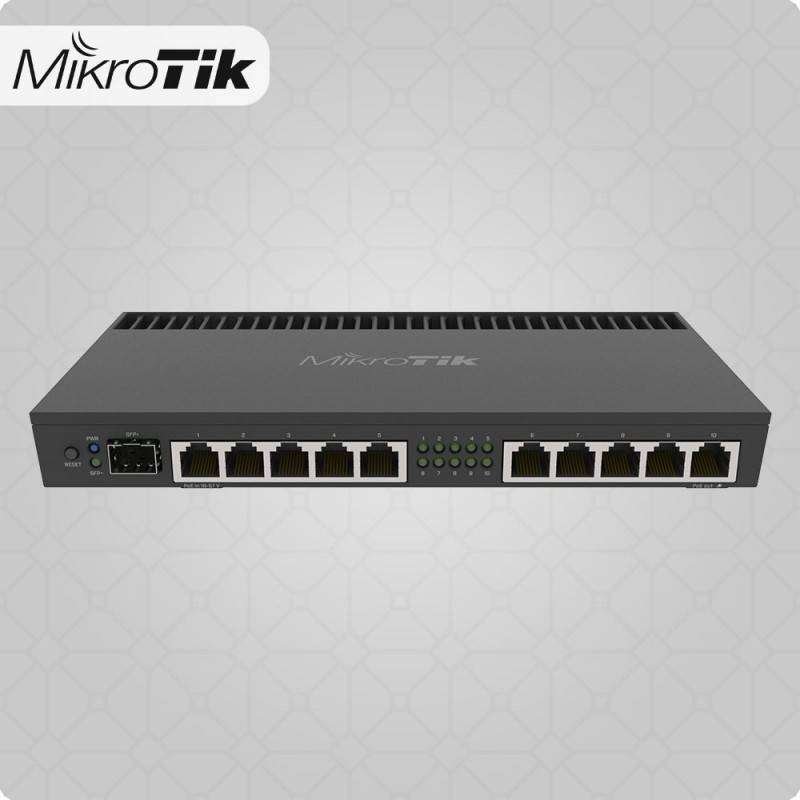

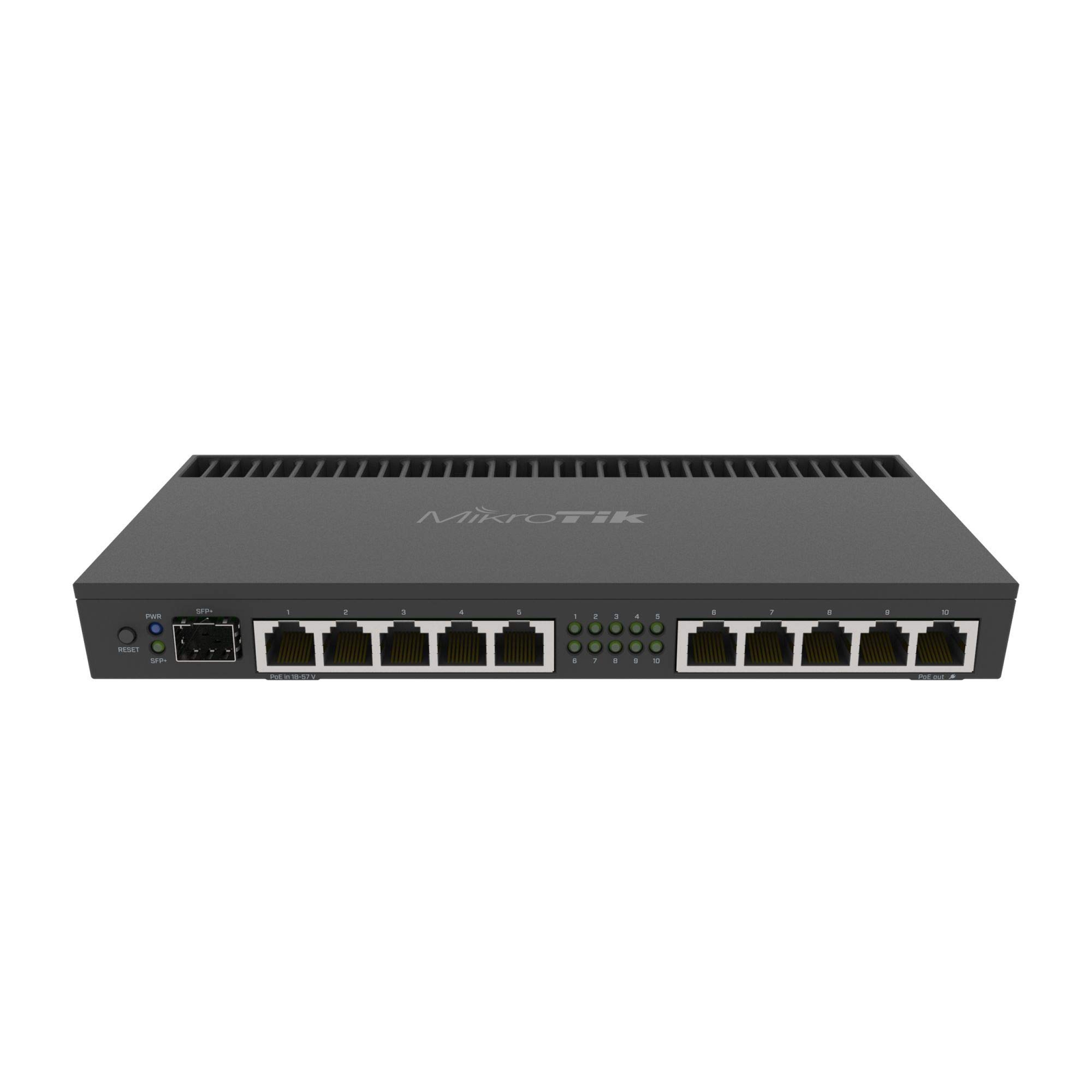

MIKROTIK RB4011IGS+RM, Ethernet 10-Port Gigabit Router,RB4011IGS+RM

MikroTik RB4011iGS+RM — Carrier-Grade Routing Power Meets Professional Rackmount Affordability

Matte Black Metal Enclosure | 10× Gigabit Ethernet | 10Gbps SFP+ | Quad-Core 1.4GHz ARM Cortex-A15 | 1GB RAM | IPsec Hardware Acceleration | RouterOS Level 5

There is a category of networking challenge that consumer routers simply cannot address — not because of brand loyalty or budget bias, but because of raw, fundamental hardware limitations. When your network carries multi-gigabit traffic loads, hosts complex VPN architectures, enforces sophisticated firewall rule chains, or anchors a professional data centre or ISP deployment, you need a router that was built from the silicon up to handle the demands of enterprise infrastructure. The MikroTik RB4011iGS+RM was engineered precisely for that moment — and it delivers carrier-class performance at a price that makes competing vendors question their existence.

This is not a home router wearing a business suit. This is a genuine professional-grade routing platform with the processing muscle, port density, 10G uplink capability, hardware-accelerated IPsec, and RouterOS Level 5 intelligence to serve as the beating heart of your most demanding network — rack-mounted, fanless, and built to run continuously for years without compromise.

🖧 What Is the MikroTik RB4011iGS+RM and Who Is It Built For?

The RB4011 series delivers amazingly powerful routers with ten Gigabit ports, an SFP+ 10Gbps interface, and IPsec hardware acceleration — using a quad-core Cortex A15 CPU, the same processor found in MikroTik’s carrier-grade RB1100AHx4 unit.

Let that sink in. The same quad-core CPU architecture used in MikroTik’s flagship carrier-grade platform is powering this professionally priced rackmount router. That is not a marketing claim — it is a hardware reality that puts the RB4011iGS+RM in an entirely different performance class from anything remotely comparable in its price range.

This device is the clear choice for:

• ISPs and WISPs requiring high-throughput routing for subscriber management
• Small and medium data centres needing dense, affordable edge routing
• Enterprise branch offices demanding VPN termination without performance penalties
• System administrators managing multi-VLAN, multi-tenant, or multi-site networks
• Network engineers and IT managers who need every RouterOS capability without software restriction
• High-performance home labs where serious networking knowledge meets serious hardware
• Colocation environments requiring rack-dense, energy-efficient routing infrastructure

⚙️ Quad-Core ARM Cortex-A15 @ 1.4GHz — The Carrier-Class Engine

The Same CPU That Powers MikroTik’s Flagship Carrier Platform

The RB4011iGS+RM is equipped with the AL21400 chipset — a robust four-core processor operating at 1400 MHz. This powerful processing capability translates into a network router that can handle complex tasks with ease and speed, whether managing a data-heavy network or running resource-intensive applications.

The Annapurna Labs AL21400 — a quad-core ARM Cortex-A15 processor — is the defining feature that separates the RB4011iGS+RM from the competition. This is not an entry-level or midrange networking chip dressed up in marketing language. It is the same silicon architecture trusted by MikroTik in their carrier-grade RB1100AHx4 — a device deployed by telecommunications providers handling real-world ISP traffic at scale.

What does this processing power translate to in real network performance?

• Up to 9.8Gbps routing and bridging throughput — benchmarked using RFC2544 methodology with Xena Networks test equipment
• Over 2Gbps IPsec VPN throughput — hardware-accelerated, not software-emulated
• Complex routing, VLANs, VPN tunnelling, and firewall rules — all handled without performance degradation thanks to the ARM quad-core architecture and 1GB of RAM
• Deep packet inspection, complex firewall rule chains, and simultaneous multi-function operation with headroom to spare

1GB RAM — Memory for Every Workload You Can Design

The 1GB of RAM serves as a sturdy foundation, ensuring not only high-speed data processing but also overall system reliability — providing the working memory headroom to maintain large routing tables, track thousands of active firewall connections, sustain multiple concurrent VPN sessions, run hotspot gateway services, and execute complex RouterOS scripting workflows simultaneously, without ever approaching a memory ceiling.

🔌 10× Full Gigabit Ethernet Ports — Maximum Wired Density

Every Port. Full Speed. Zero Compromise.

The RB4011iGS+RM ships with ten 10/100/1000 Gigabit Ethernet RJ-45 ports — every single one operating at full 1Gbps capacity. This port density makes it the routing backbone capable of connecting:

• Multiple ISP uplinks for redundant multi-WAN load balancing and failover
• Core switches serving dozens of downstream devices
• Individual servers, NAS units, and high-throughput workstations at full wire speed
• VoIP gateways, IP cameras, and PoE-powered network devices
• Dedicated management interfaces completely isolated from production traffic

No port sharing. No speed degradation. No compromise — just ten independent Gigabit connections ready to carry your most demanding traffic loads simultaneously.

PoE Output on Port 10 — Power Your Infrastructure Over Ethernet

The device provides passive PoE-out on Ether10, supporting up to 57V with a maximum output of 600mA when powered with an 18–30V input — enabling the RB4011iGS+RM to power downstream MikroTik access points, IP cameras, VoIP phones, and other PoE-capable devices directly from the router port. Eliminate the need for a separate PoE injector on your last-hop device and keep your rack cleaner, simpler, and more efficient.

Flexible Power Input — DC Jack and Passive PoE-In

The device’s support for multiple power methods, including AC/DC adapter (12–57V DC) and 18–57V passive PoE-in, enhances its versatility significantly — adapting to various power conditions and installation environments, making it suitable for a wide range of network setups.

Power the RB4011iGS+RM over the Ethernet cable in locations where a DC outlet isn’t conveniently accessible — ideal for ceiling-mounted or remote rack deployments where cable runs are already in place.

⚡ 10Gbps SFP+ Port — The Multi-Gigabit Uplink That Changes Everything

Because Your Core Network Deserves More Than Gigabit

The RB4011iGS+RM’s 10G SFP+ port delivers unparalleled advantages, offering fast data transmission speeds that outperform traditional connections — effortlessly handling large data volumes, high-resolution multimedia streaming, and latency-sensitive applications. This means quicker backups, smoother video conferencing, and virtually lag-free online experiences.

The 10Gbps SFP+ cage is the performance multiplier that makes the RB4011iGS+RM future-proof for today’s network demands. Real-world applications of the 10G uplink include:

• 10G uplink to core switches — aggregate all ten Gigabit ports into a single 10G backbone connection without bandwidth bottlenecks
• High-speed NAS connectivity — transfer terabytes of backup, media, and database files at ten times the speed of standard Gigabit links
• Data centre interconnect — connect server racks, storage arrays, and network aggregation points at 10G speeds
• Fibre ISP connections — directly terminate 10G fibre uplinks from your ISP without the need for a separate media converter
• Point-to-point links — create 10G backhaul connections between buildings or network segments

Compatible with a wide range of MikroTik-tested SFP+ modules, direct attach cables, and third-party transceivers — giving you the flexibility to build the exact fibre architecture your network demands. Note: Passive DAC modules (S+DA0001/S+DA0003) are not supported.

🔒 IPsec Hardware Acceleration — 2Gbps+ VPN Without Touching the CPU

Enterprise VPN Throughput at a Fraction of Enterprise Cost

VPN performance is where most routers reveal their true limitations. Software-based IPsec encryption consumes CPU cycles greedily — often crippling throughput on underpowered devices to just a fraction of their routing capability. The RB4011iGS+RM eliminates this problem entirely.

Benchmarks show maximum throughputs of up to 9.8Gbps for routing and bridging and over 2Gbps for IPsec VPN tunnels — delivered through dedicated hardware acceleration that handles cryptographic operations independently from the main CPU cores. The result is:

• IPsec site-to-site tunnels operating at 2Gbps+ without CPU saturation
• Multiple concurrent VPN connections sustained simultaneously without performance degradation
• AES-128 and AES-256 hardware encryption — full security without the throughput penalty of software implementation
• VPN gateway for hundreds of remote users without breaking a sweat
• Zero performance impact on other routing tasks — firewall, NAT, QoS, and routing continue unaffected during peak VPN load

This hardware-accelerated IPsec capability alone justifies the RB4011iGS+RM for any organization running remote access VPNs, site-to-site connectivity, or encrypted inter-office communication at scale.

🏗️ Professional Matte Black Metal Enclosure — Rackmount-Ready Out of the Box

Built for Server Rooms, Not Living Rooms

The RB4011iGS+RM comes with a compact and professional-looking solid metal enclosure in matte black, with two rackmount ears that will securely fasten the unit in a standard 1U rack space.

The engineering quality of the RB4011iGS+RM’s chassis reflects its positioning as a professional tool:

• Solid matte black metal construction — not plastic, not ABS composite — genuine metal that conveys durability and dissipates heat effectively
• Rack ears included — mount directly into a standard 19″ equipment rack in a standard 1U space without purchasing additional accessories
• Compact 228 × 120 × 30mm form factor — takes minimal rack space while delivering maximum port density
• Fanless passive cooling — complete silence in operation, with zero mechanical components to fail, wear, or generate noise in sensitive environments
• PCB temperature monitoring — real-time thermal visibility through RouterOS for proactive thermal management
• Voltage monitoring — continuous power quality monitoring with alert thresholds configurable in RouterOS

Energy Efficiency That Respects Your Power Budget

The RB4011iGS+RM is remarkably efficient, consuming only 18 watts at maximum power without attachments — achieved thanks to the ARM architecture used for the CPU, which not only lowers operational costs but also minimizes heat generation, contributing to a cooler and more energy-conscious networking setup.

At 18W typical power draw, the RB4011iGS+RM costs a fraction of a penny per hour to operate — making it one of the most power-efficient 10-port Gigabit routers with 10G SFP+ capability available anywhere. In colocation facilities where power per rack unit is billed at a premium, this efficiency translates directly into measurable cost savings.

🔒 RouterOS Level 5 — The Full Power of MikroTik’s Greatest OS, Included

No Feature Walls. No Subscription Fees. No Compromises.

The device has an operating system preinstalled and licensed — no separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years from the date of purchase.

RouterOS Level 5 is the highest non-carrier licence tier in MikroTik’s licensing structure — and it comes with every RB4011iGS+RM at no additional cost. The complete feature set includes:

🔥 Stateful Firewall and Deep Packet Inspection

Build granular, multi-layer firewall policies with per-IP, per-MAC, per-protocol, and per-interface rules. Layer-7 pattern matching enables application-aware traffic filtering beyond simple port-based rules — detect and control specific application protocols at wire speed.

🌐 Full Multi-Protocol VPN Suite

Support for IPsec (hardware-accelerated), OpenVPN, PPTP, L2TP, SSTP, and WireGuard — build secure site-to-site tunnels, remote access VPNs, and encrypted overlay networks for remote workers, branch offices, and multi-site deployments. All VPN types supported simultaneously on a single device.

🏷️ Advanced VLAN and Network Segmentation

Create unlimited logical network segments with 802.1Q VLAN tagging, hardware-enforced inter-VLAN routing, and per-VLAN firewall policies. Segment staff, guests, management, IoT, servers, and DMZ networks on a single physical infrastructure.

📊 Quality of Service and Traffic Shaping

Implement Hierarchical Token Bucket (HTB) queue disciplines, per-user and per-application bandwidth limits, DSCP marking and remarking, and traffic prioritization for VoIP, video conferencing, and critical business applications. Ensure SLA compliance across every traffic class on your network.

🏨 Hotspot Gateway and Captive Portal

Deploy branded login portals for guest Wi-Fi, hotel networks, campus hotspots, and public internet access points. Integrate with RADIUS for centralized authentication, per-user session tracking, time-based access limits, bandwidth quotas, and prepaid billing — all manageable through RouterOS without additional software.

🌍 Advanced Routing Protocols

Full support for OSPF, BGP, RIP, MPLS, and ECMP routing — enabling the RB4011iGS+RM to participate in complex multi-AS routing environments, ISP peering configurations, and enterprise dynamic routing topologies that demand more than static routing.

🤖 Scripting, Scheduler and Automation

Automate configuration tasks, schedule network maintenance operations, respond to network events with custom RouterOS scripts, and build intelligent self-managing network policies — transforming the RB4011iGS+RM from a static router into an adaptive, intelligent network node.

📈 Monitoring, Analytics, and Diagnostics

Full Netflow/sFlow traffic export, SNMP v1/v2/v3 support, The Dude network management integration, RMON, bandwidth graphs, real-time traffic analysis, and detailed system logs — giving network administrators complete, granular visibility into every packet, every session, and every device on the network.

🖥️ Configuration Interfaces

• WinBox — intuitive graphical configuration client for Windows (runs via WINE on Linux/macOS)
• WebFig — browser-based configuration accessible from any device, anywhere
• CLI / SSH / Telnet — full command-line access for scripting, automation, and advanced configuration
• Serial Console Port (RJ45) — direct out-of-band access for emergency recovery and configuration when network access is unavailable

🏢 Real-World Deployment Scenarios — Where the RB4011iGS+RM Delivers

The RB4011iGS+RM is ideal for enterprise and service provider environments, small data centres, branch offices, or high-throughput home labs. Its rack-mount design, PoE-out, and multi-gig capabilities make it very versatile.

Proven deployment scenarios include:

• ISP and WISP core routing — manage subscriber traffic, enforce per-user bandwidth policies, and run BGP peering with full routing table support
• Multi-tenant data centre edge routing — terminate customer connections, enforce VLAN isolation, and manage inter-tenant traffic at 10G speeds
• Enterprise WAN aggregation — aggregate multiple branch WAN links, terminate VPN tunnels, and enforce QoS across all corporate traffic
• Colocation facility routing — deliver dense, energy-efficient routing in rented rack space where power and cooling costs are metered
• School and campus network backbone — route between student, staff, management, and guest VLANs with content filtering and per-user bandwidth control
• Retail chain head-office routing — centralize traffic management for multiple branch locations connected via IPsec VPN tunnels
• High-throughput home lab — run BGP, OSPF, MPLS, and complex firewall scenarios in a professional environment for training, certification preparation, or network research

📋 Full Technical Specifications

❓ Frequently Asked Questions

What makes the RB4011iGS+RM different from consumer routers? With its ARM-based quad-core processor and 1GB RAM, the RB4011 masters even the most demanding scenarios — complex routing, VLANs, VPN tunnelling, and firewall rules — with no compromise on performance. Consumer routers have none of the processing power, port density, VPN throughput, or software depth that the RB4011iGS+RM delivers.

What is the IPsec VPN throughput of the RB4011iGS+RM? Benchmarks show over 2Gbps for IPsec VPN tunnels — achieved through dedicated hardware acceleration, ensuring that VPN encryption does not degrade routing performance for other traffic.

Does the RB4011iGS+RM support 10G connectivity? Yes. The SFP+ cage supports 10Gbps connectivity through a compatible SFP+ module (not included). Note that passive DAC modules are not supported.

Is the RB4011iGS+RM suitable for rack deployment? Yes. The RB4011iGS+RM includes two rackmount ears that will securely fasten the unit in a standard 1U rack space.

Can the RB4011iGS+RM be powered via PoE? Yes. It accepts passive PoE input on Ether1 at 18–57V DC, and also provides passive PoE output on Ether10 for powering downstream devices.

Does it support BGP and dynamic routing protocols? Yes. RouterOS Level 5 includes full support for BGP, OSPF, RIP, MPLS, ECMP, and policy-based routing — suitable for ISP peering and enterprise dynamic routing environments.

How does the RB4011iGS+RM compare to the RB2011 and L009? The RB4011iGS+RM significantly outperforms both — delivering more than double the ports, a 10G SFP+ uplink, hardware-accelerated IPsec at 2Gbps+, a carrier-grade quad-core CPU, and 1GB of RAM. It sits firmly in the enterprise and service provider tier.

✅ Why the MikroTik RB4011iGS+RM Is the Definitive Professional Rackmount Router at Its Price Point

The networking market has no shortage of devices that claim professional capability. The MikroTik RB4011iGS+RM is one of the rare few that actually delivers — in benchmarks, in real-world deployments, and in total cost of ownership.

• 🧠 Quad-core ARM Cortex-A15 @ 1.4GHz — the same carrier-grade CPU used in MikroTik’s RB1100AHx4
• 💾 1GB DDR3 RAM — memory headroom for every routing table, firewall state, and VPN session you can build
• ⚡ 10Gbps SFP+ — future-proof uplink that outpaces standard Gigabit by a factor of ten
• 🔌 10× Full Gigabit Ethernet — maximum wired port density for professional deployments
• 🔒 2Gbps+ hardware IPsec — enterprise VPN performance without enterprise pricing
• 📊 9.8Gbps routing throughput — RFC2544-tested, real-world verified
• 🏗️ 1U rack-ready metal enclosure — professional, silent, and built to last
• 🔋 Only 18W typical power draw — exceptional performance per watt
• 🛡️ RouterOS Level 5 — the most powerful network OS in its class, included and perpetually updated
• 🌡️ -40°C to +60°C operating range — engineered for real-world deployment conditions
