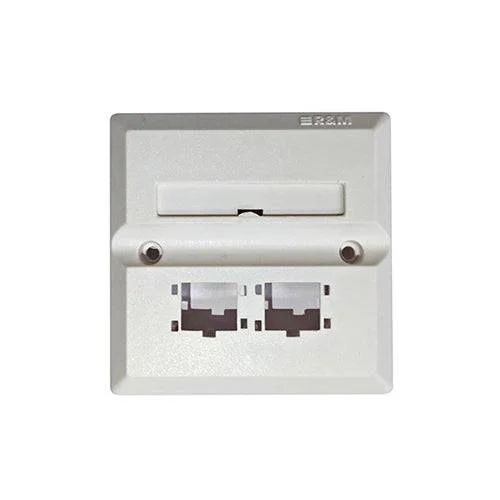

R&M BS Faceplate 86×86, 2×1-Port, Pure White (R7950

The R&M BS Faceplate 86×86 is a two-port wall outlet plate designed for flush-mounting (FM) installations, sized to the standard 86mm x 86mm footprint used across structured cabling projects. Built from PC + ABS plastic and finished in pure white (RAL 9010), it ships empty, ready to accept RJ45 connection modules, ISDN 2xRJ45 modules, or fiber optic connectors fitted with support plates. At just 43.5 grams, it’s a lightweight, straightforward outlet solution for terminating one or two structured cabling circuits at a single wall point. This faceplate suits home, office, and light commercial installations in Nairobi where a clean, standards-compliant RJ45 wall outlet is needed.

Design and Construction

The faceplate is molded from PC/ABS plastic, a combination chosen for its rigidity and clean surface finish, finished in pure white (RAL 9010) to blend into most interior wall colors. Construction is halogen-free, meeting DIN/VDE 0472/815 standards — a common requirement for fire-safety-conscious cabling installations in offices, healthcare facilities, and public buildings. The plate’s compact 86 x 86mm dimensions match the standard flush-mount wall box size used across most structured cabling systems, simplifying installation into existing electrical infrastructure.

Port Compatibility

The faceplate is built for 2 x 1-port capacity, accepting a range of module types:

• RJ45 connection modules, for standard Ethernet data circuits
• ISDN 2xRJ45 modules, for legacy or hybrid voice/data telephony setups
• Fiber optic connectors with support plates, allowing fiber terminations at the same wall point when fitted with the appropriate adapter plate

This flexibility lets one faceplate serve either two independent Ethernet circuits, a combined data/voice setup, or a fiber connection, depending on which modules are fitted.

Scope of Supply

Each faceplate ships as a complete kit, including:

• The 86x86mm faceplate body, sized for 2 RJ45 ports
• Fastening screws for mounting to a standard wall box
• A blind cover, allowing the plate to be used as a single-port outlet when only one connection is required
• Label strips, for identifying each port’s function at the wall point

This means installers don’t need to separately source blanking covers or labeling accessories — everything needed for a standard two-port (or single-port, using the blind cover) installation is included.

Installation Characteristics

The faceplate mounts to a standard flush-mount wall box using the included fastening screws, with no specialist tools required. Because the blind cover is included as standard, the same faceplate SKU can serve either a fully populated two-port outlet or a single-port outlet with one position blanked off — reducing the number of different faceplate variants an installer needs to stock.

Supported Applications

• Standard Ethernet wall outlets, terminating one or two RJ45 data circuits at a single point
• Combined data/voice outlets, using an ISDN 2xRJ45 module alongside or instead of a standard RJ45 module
• Fiber-to-the-desk terminations, when fitted with a compatible fiber optic connector and support plate
• Single-port installations, using the included blind cover to blank off the unused second position

Who This Faceplate Is Best Suited For

• Home and office network installers needing a clean, standards-compliant two-port RJ45 outlet for a bedroom, office, or workstation
• Cabling contractors on R&M-standardized projects, maintaining consistency with an existing R&M structured cabling ecosystem
• Small businesses in Nairobi wiring reception desks, meeting rooms, or workstations with one or two data connections at a single wall point

Specifications
