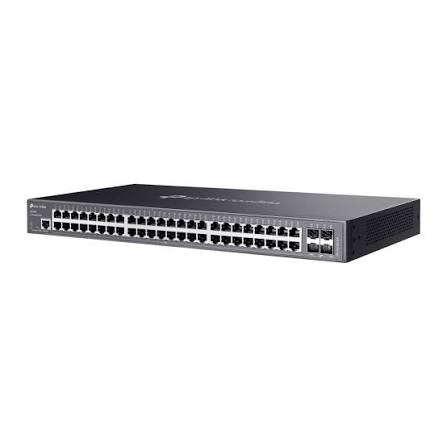

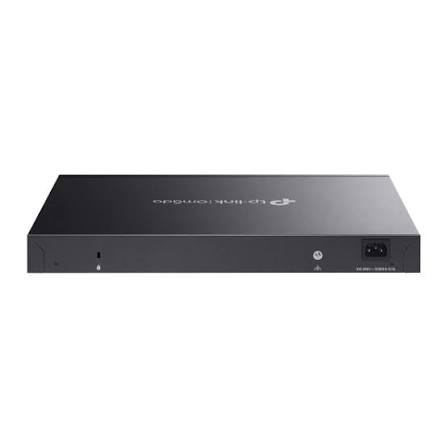

TP-Link Omada 48-Port Gigabit L2+ Managed Switch with 48-Port PoE+ & 4-Port 10GE SFP+ – Model No: TL-SG3452XP

TP-Link Omada 48-Port Gigabit L2+ Managed Switch with 48-Port PoE+ & 4-Port 10GE SFP+ – Model No: TL-SG3452XP

Some networks don’t just need more ports — they need a backbone that won’t buckle as everything above it keeps growing. When 48 PoE devices are all pulling data through the same switch and that switch is also the aggregation point feeding your core network or server room, a standard Gigabit uplink becomes the actual bottleneck long before your PoE budget does. The TP-Link TL-SG3452XP was built for that exact scenario: a 48-port Gigabit L2+ managed switch with a full 500 W PoE+ budget and four 10-Gigabit SFP+ uplinks, engineered to be the backbone of a serious enterprise or campus network in Kenya, not just another switch in the rack.

What Is the TL-SG3452XP and What Sets It Apart From TP-Link’s Other 48-Port Switch?

The TL-SG3452XP delivers 48 PoE+ Gigabit RJ45 ports alongside 4 dedicated 10-Gigabit SFP+ uplink slots — a meaningful step up from TP-Link’s other 48-port JetStream switch, the TL-SG3452P, which offers Gigabit-only SFP uplinks and a 384 W PoE budget. The TL-SG3452XP instead delivers a full 500 W PoE+ power budget and genuine 10G uplink capacity, positioning it as the switch for organizations whose 48-port PoE deployment is large enough, or growing fast enough, that a standard Gigabit backbone connection would become the limiting factor.

500W PoE+ Budget: Power for the Largest On-Premises Deployments

The TL-SG3452XP delivers a 500 W total PoE+ power budget across all 48 ports, 802.3at/af compliant with up to 30 W per port. At roughly 8-12 W per standard camera, that’s enough to power 40-60+ devices simultaneously depending on your mix — comfortably serving a full building’s worth of cameras, access points, and IP phones with genuine headroom rather than a budget that strains the moment your deployment is complete. For organizations running high-draw PTZ cameras or dual-radio access points across a large share of their 48 ports, that extra power budget over TP-Link’s standard 48-port switch is often the difference between confident scaling and constant power-budget management.

10-Gigabit SFP+ Uplinks: Removing the Backbone Bottleneck

This is the feature that defines the TL-SG3452XP’s role in a larger network. Its 4 dedicated 10GE SFP+ slots provide up to 10 Gbps of uplink bandwidth per port — ten times the throughput of a standard Gigabit SFP uplink. For a 48-port switch aggregating traffic from dozens of simultaneous camera streams, VoIP calls, and general data traffic, a Gigabit uplink to the core network can become a genuine bottleneck long before the switch itself runs out of capacity. The TL-SG3452XP’s 10G uplinks remove that constraint entirely, making it suitable as a true aggregation switch feeding a server room, core router, or data center backbone rather than just another access-layer switch.

176 Gbps Switching Capacity for High-Density Enterprise Traffic

With a switching capacity of 176 Gbps and a packet forwarding rate of 130.9 Mpps, the TL-SG3452XP delivers roughly 70% more throughput than TP-Link’s standard TL-SG3452P — capacity built specifically to support the combination of 48 PoE devices and 10G backbone traffic without becoming the constraint anywhere in that chain. A 12 Mbit packet buffer, nearly triple the buffer memory of the standard 48-port model, further ensures smooth performance even under heavy, bursty traffic loads typical of large surveillance and enterprise deployments.

Full Layer 2+ and Layer 3 Feature Set

The TL-SG3452XP carries the complete JetStream Layer 2+ and Layer 3 feature set: comprehensive Access Control Lists with packet content filtering, 802.1X authentication with RADIUS and TACACS+ support, full Spanning Tree Protocol with STP security hardening, and static routing across up to 48 routes and 128 IPv4/IPv6 interfaces — more than double the routing interface capacity of TP-Link’s standard 48-port switch. QinQ (VLAN VPN) support and Private VLAN capability add service-provider-grade segmentation options relevant to larger, more complex network architectures. DHCP Server, DHCP Relay, and DHCP L2 Relay round out a genuinely comprehensive Layer 3 feature set for a switch of this class.

Enterprise Security Depth for Mission-Critical Networks

IP-MAC-Port Binding across 512 entries, DHCP Snooping, ARP Inspection, and IPv4/IPv6 Source Guard protect against common local network attacks, while DoS Defend and configurable Static/Dynamic Port Security limit exposure to unauthorized devices. 802.1X authentication with VLAN Assignment and Guest VLAN support gives network administrators fine-grained control over exactly how unauthenticated or partially-authenticated devices are handled — critical for organizations that need to demonstrate real, auditable access control rather than relying on physical network isolation alone.

Omada SDN Integration and Centralized Enterprise Management

The TL-SG3452XP integrates fully with TP-Link’s Omada SDN platform through Cloud-Based Controller, OC200/OC300 hardware controllers, or the Omada Software Controller, with Zero-Touch Provisioning for rapid deployment across multiple switches and sites. Intelligent Network Monitoring with abnormal event warnings gives IT teams early visibility into developing problems, while Dual Image and Dual Configuration support ensure firmware updates and configuration changes can be rolled back safely if something goes wrong — an important safeguard for a switch this central to daily operations.

Built for Continuous, High-Density Enterprise Operation

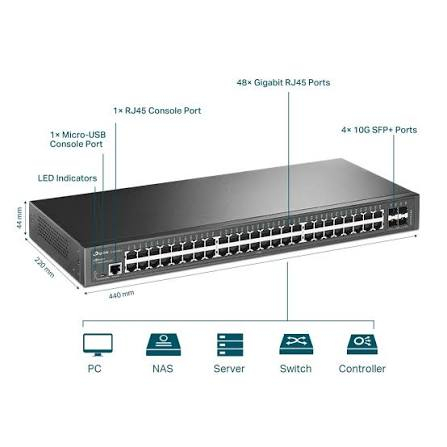

With three fans for sustained cooling under heavy PoE load, a full-width 1U rackmount metal chassis, and both RJ45 and Micro-USB console ports for direct CLI access, the TL-SG3452XP is engineered for equipment rooms running dense, continuous PoE deployments. It carries CE, FCC, and RoHS certification for commercial deployment standards.

Perfect For

• Large enterprises and campuses needing a 10G-capable backbone switch for 48+ PoE devices
• Data centers and server rooms requiring high-throughput aggregation switching
• Universities and large school campuses with extensive multi-building camera and Wi-Fi networks
• Hospitals and large healthcare campuses needing high-density, high-security PoE deployment
• Hotel chains and large hospitality properties running extensive access point and door control networks
• ISPs and service providers needing QinQ and advanced VLAN segmentation at scale
• Organizations whose existing 48-port switch has become a backbone bottleneck under Gigabit uplinks
• Large warehouses and logistics hubs with extensive high-resolution surveillance infrastructure
• IT departments building multi-switch Omada SDN networks requiring high-speed inter-switch links
• Any large-scale deployment where both PoE power headroom and uplink bandwidth genuinely matter

The Bottom Line

At true enterprise scale, the switch feeding your core network needs backbone bandwidth to match its port density — otherwise you’ve simply moved the bottleneck rather than removed it. The TL-SG3452XP delivers 48 PoE+ Gigabit ports with a full 500 W power budget, 10-Gigabit SFP+ uplinks that eliminate backbone constraints, and the complete JetStream Layer 2+/Layer 3 feature set to secure and manage a network of real consequence.
