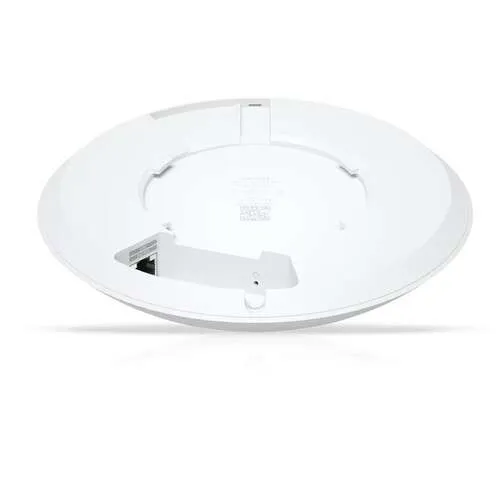

Ubiquiti UniFi U7-LR — WiFi 7 Long-Range Access Point

When you need to cover a lot of ground with next-generation speed, this is the access point built for the job. The Ubiquiti UniFi U7-LR combines cutting-edge WiFi 7 performance with a high-gain, long-range antenna design — blanketing large open spaces, busy offices, warehouses, and campuses in fast, reliable wireless from a single ceiling-mounted disc. With a 2.5 GbE uplink, support for 300+ devices, and the famously powerful UniFi platform, it’s the future-proof way to deliver serious coverage without scattering APs everywhere.

WiFi 7 Speed That’s Ready for What’s Next

This is wireless built for the demands of tomorrow’s devices. The U7-LR supports the WiFi 7 (802.11be) standard for ultra-fast wireless performance and reduced latency, delivering a combined throughput of up to 4.9 Gbps — 688 Mbps at 2.4 GHz and 4.3 Gbps at 5 GHz — to support high-density environments and bandwidth-intensive applications.

That kind of throughput means crowded video calls, large file transfers, 4K/8K streaming, and data-heavy cloud work all run smoothly — even with dozens of devices connected at once. And it doesn’t leave older gear behind: it’s backward compatible with WiFi 6/6E and earlier devices to ensure broad client support.

• WiFi 7 (802.11be) for next-generation speed and lower latency
• Up to 4.9 Gbps combined throughput across both bands
• 5 spatial streams with 3×3 MU-MIMO on 5 GHz and 2×2 MU-MIMO on 2.4 GHz (DL/UL)
• 2.5 GbE uplink to feed the backhaul bandwidth WiFi 7 demands

Long-Range by Design — Cover More With Less

The “LR” isn’t just a label. This AP is engineered to reach. Its long-range design with high-efficiency antennas extends wireless coverage across large areas, providing about 1,750 square feet of coverage while supporting over 300 concurrent connections.

That extended reach is exactly what large, challenging spaces need. Its advanced antenna design and high transmit power facilitate extended coverage, making it ideal for large venues and challenging RF environments. One well-placed U7-LR can blanket an area that would otherwise require multiple lesser APs — saving you hardware, cabling, and complexity.

Built for Backhaul: The 2.5 GbE Uplink Difference

Here’s a detail that matters: a fast AP needs a fast wired connection, or it bottlenecks. The U7-LR solves that. Its 2.5 GbE uplink port ensures the high-speed backhaul needed to fully leverage WiFi 7 throughput capabilities. No artificial Gigabit ceiling — your wireless speed actually reaches your wired network.

One Cable, Simple Install, Place It Anywhere

Deployment is refreshingly easy. PoE support simplifies installation by combining data and power over a single cable, so you mount it wherever coverage is best — not just where there’s an outlet. Powered via PoE with a compact Ø175.7 x 43 mm footprint, it mounts to ceilings or walls using the included plastic mounting plate.

A quick planning note: the AP is powered via PoE+ and a PoE injector is not included — power it from a UniFi PoE switch, a UniFi gateway/console, or a compatible injector.

Seamless Roaming for Mobile-Heavy Spaces

Walking from one end of a building to the other shouldn’t drop your call. The U7-LR keeps connections fluid. It supports seamless roaming via 802.11r Fast Roaming and 802.11k RRM, making it a reliable choice for mobile-heavy environments. Combined with band steering, client roaming optimization, and traffic shaping, the experience stays smooth as users and devices move.

Manage It All From One Powerful Platform

This is the UniFi advantage: enterprise-grade control that’s genuinely easy to use. The U7-LR is fully managed through the UniFi Network Controller or UniFi Cloud Portal, offering an intuitive interface for centralized configuration, monitoring, and firmware management.

The tools admins actually want are all built in. IT administrators benefit from zero-touch provisioning, traffic analytics, VLAN support, and guest portal setup, with the ability to define SSIDs per band, monitor real-time client-level traffic, and apply advanced QoS policies that prioritize latency-sensitive applications like VoIP and video conferencing.

Built Tough, NDAA-Compliant

• Polycarbonate and aluminum alloy construction operates reliably from -30°C to 50°C
• NDAA compliance makes it a strong candidate for government and federally funded projects
• Guest traffic isolation and a wall/ceiling mounting kit included

Who Is the UniFi U7-LR For?

If you need maximum coverage and modern speed for big or busy spaces, this is your access point. It’s well-suited for demanding enterprise, hospitality, and large open-space environments, as well as warehouses, campuses, large homes, and any site where one strong, far-reaching AP beats a cluster of weaker ones.

The Bottom Line

The Ubiquiti UniFi U7-LR delivers WiFi 7 speed, long-range coverage up to 1,750 sq ft, 300+ device capacity, a fast 2.5 GbE uplink, simple PoE installation, and the unbeatable ease of UniFi management — all in one sleek, future-ready package. Cover more, connect more, and stay ready for what’s next. Add the UniFi U7-LR to your network today and blanket your space in fast, reliable, next-generation wireless.

---
