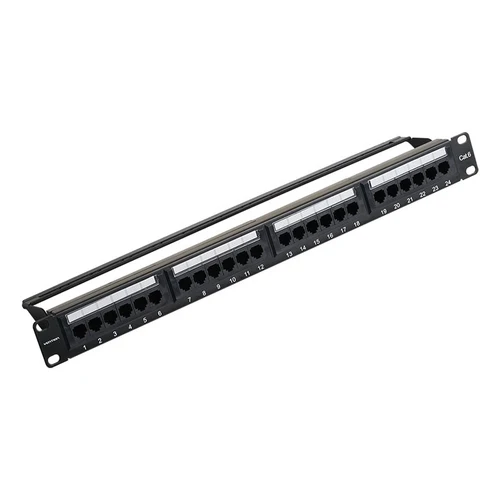

Vention Cat.6 UTP 24-Port Keystone Patch Panel Black (KGAB0)
The Vention Cat.6 UTP 24-Port Keystone Patch Panel Black (KGAB0) organizes up to 24 individually numbered Ethernet connections in a single 1U rack space, so a server room or office cabinet keeps its cabling structured instead of tangled. It fits any standard 19-inch equipment rack, and, as a result, suits both small business setups and larger data center deployments where vertical rack space is limited. In addition, its cold-rolled steel body with a powder-coated, rustless finish withstands the temperature swings, humidity, and regular handling typical of network equipment rooms, offering longer service life than plastic alternatives. Furthermore, each port uses gold-plated phosphor bronze pins and IDC reeds, rated for T568A and T568B wiring, so installers can terminate cables to either standard without extra reference material, and the panel supports Gigabit Ethernet speeds up to 1000Mbps. A rear integrated cable management bar organizes incoming cable runs, reduces strain on terminations, and improves airflow through the rack, while numbered, replaceable port labels make ongoing identification and troubleshooting straightforward.
Key Features
In short, this patch panel stands out in five areas:
- 24 keystone RJ45 ports in 1U, which, in turn, maximizes port density in racks where vertical space is limited

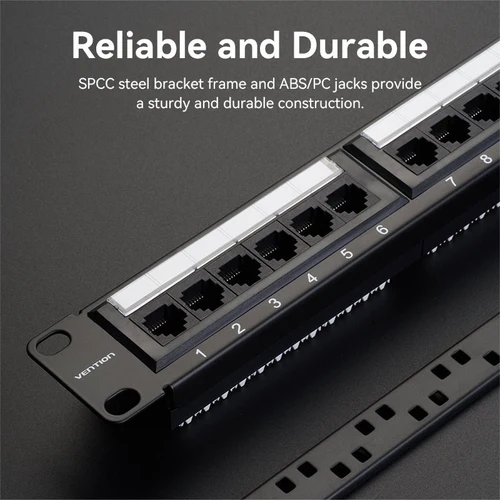

- Cold-rolled steel body with a rustless, powder-coated finish, built for long-term durability in network equipment environments
- Gold-plated phosphor bronze contacts, supporting stable Gigabit Ethernet performance up to 1000Mbps

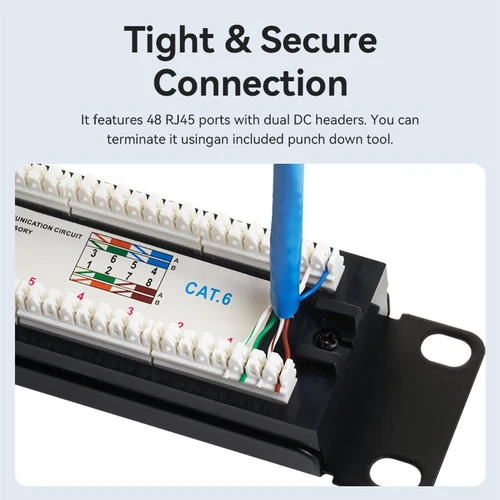

- T568A and T568B dual wiring support, with color-coded labeling for either standard
- Rear cable management bar with numbered labels, keeping cable runs organized and connections easy to identify
Technical Specifications
Specifically, the table below details every core specification of this patch panel:
| Specification | Details |
|---|---|
| Model | Vention KGAB0 |
| Product Type | Cat.6 UTP 24-port keystone patch panel |
| Number of Ports | 24 |

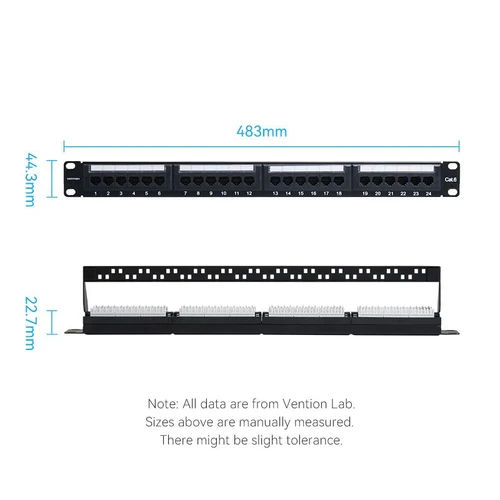

| Rack Size | 1U, standard 19-inch rack |
| Shell Material | Cold-rolled steel, powder-coated |
| Connector | RJ45 keystone |
| Pin Material | Phosphor bronze, gold-plated surface |
| IDC Reed | Phosphor bronze |
| Wiring Standards | T568A / T568B |
| Wire Gauge | 22–26 AWG |
| Data Transfer Rate | Up to 1000Mbps (Gigabit Ethernet) |
| Socket Service Life | ≥1,000 mating cycles |
| Cable Management | Rear integrated cable management bar |
| Labeling | Numbered, replaceable port labels |
| Compliance | TIA/EIA-568-B |
| Color | Black |
| Compatible Cabling | Cat.6 UTP, backward compatible with Cat.5E |
Who This Patch Panel Is Best Suited For
As a result of this combination of specs, three types of users benefit most:

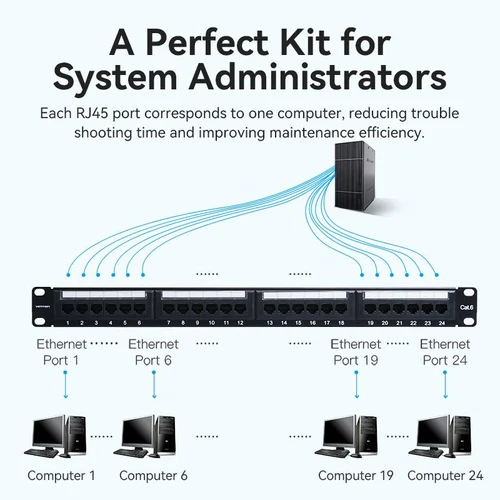

- Network installers and IT administrators, who need to organize and manage high-density Ethernet connections in a standard 19-inch rack
- Data centers and server rooms, since the rustless steel body withstands demanding thermal and humidity conditions over the long term
- Offices and structured cabling professionals, thanks to reliable Gigabit performance and clear, numbered port labeling for easy maintenance
