Vention Cat.6A UTP RJ45 Modular Plug Transparent, 100-Pack (IDGR0-100)
The Vention IDGR0-100 is a 100-piece pack of Cat.6A UTP RJ45 modular plugs, built for technicians who terminate their own Ethernet cable runs rather than buying pre-made patch cords. Each plug uses a 3-prong, gold-plated contact design, which keeps full contact with the conductor core and therefore resists corrosion over years of use. The transparent polycarbonate housing lets an installer check wire order and seating before crimping, so mis-wired pairs get caught early rather than after a cable is already run through trunking or ceiling void.
Rated for speeds up to 10Gbps and bandwidth up to 500MHz, these plugs support Cat.6A UTP cable while also working with Cat6 and Cat5e runs, which means one box of connectors covers several cable grades on the same job. Additionally, the plugs accept 22 to 26 AWG solid or stranded conductors and follow both T568A and T568B wiring standards, so they suit almost any structured cabling job in a Nairobi office, a residential estate, or an upcountry branch installation. As a bulk pack, the IDGR0-100 works out more cost-effective per plug than buying pre-terminated patch cables for large-scale runs.
Key Features
In short, five specs define what this pack of connectors offers an installer:
- 100 pieces per pack, suited to bulk structured cabling jobs and repeat terminations
- 10Gbps data rate support with bandwidth rated up to 500MHz
- 3-prong gold-plated contacts, resisting corrosion and maintaining signal quality over time

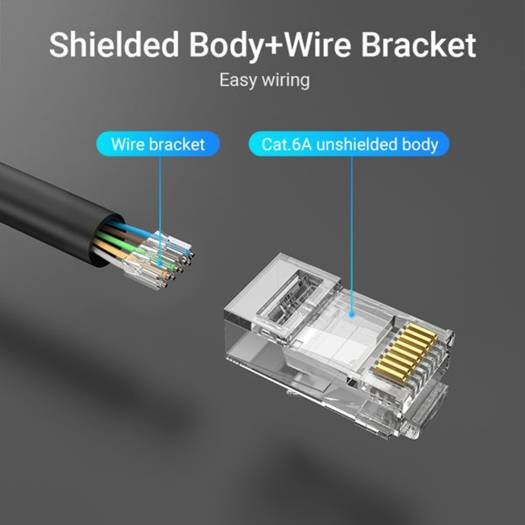

- Transparent polycarbonate housing, allowing visual wire-order checks before and after crimping
- T568A/T568B compatible, accepting 22–26 AWG solid or stranded UTP cable
Technical Specifications
The table below lists the confirmed datasheet for the Vention IDGR0-100.
| Specification | Details |
|---|---|
| Brand | Vention |
| Model | IDGR0-100 |
| Product Type | Cat.6A UTP RJ45 Modular Plug |
| Connector | RJ45 (8P8C) |
| Contact Design | 3-prong, gold-plated |
| Housing Material | Transparent polycarbonate |
| Max Data Rate | Up to 10Gbps |
| Bandwidth | Up to 500MHz |
| Wiring Standard | T568A / T568B |
| Compatible Conductor | 22–26 AWG, solid or stranded UTP |
| Cable Compatibility | Cat.6A (backward compatible with Cat6, Cat5e) |
| Pack Quantity | 100 pieces |
| Color | Transparent |
| Installation | Standard RJ45 crimping tool |
Who This Product Is Best Suited For
Given the bulk pack size and 10Gbps rating, three types of buyers get the most value from the IDGR0-100:
- Network installers and IT technicians handling structured cabling projects, since 100 plugs cover several rooms or floors without reordering mid-job
- Data centers and offices upgrading to Cat.6A, where consistent, high-quality termination across many ports matters for long-term signal reliability
- DIY networking enthusiasts and small ISPs who terminate their own cable runs and need a cost-effective connector supply for repeated use
