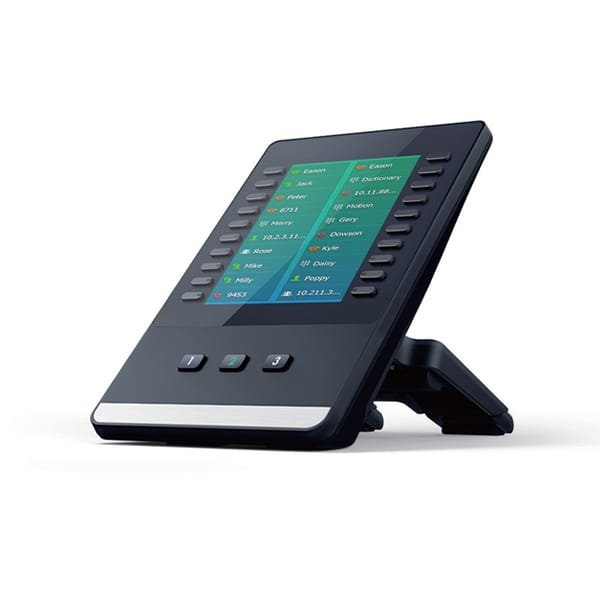

Yealink EXP50 Color-Screen Expansion Module
The Yealink EXP50 is a colour-screen expansion module built to extend the call-handling capability of Yealink’s T5 series IP phones. It features a 4.3-inch, 272 x 480-pixel backlit colour display with 16-bit colour depth, showing distinct colour icons for each programmed function across three page views. The module provides 20 physical dual-colour LED keys, expandable to 60 programmable functions total via page switching — covering BLF, speed dial, call forward, transfer, call park, pickup, and more. Up to three EXP50 units can be attached to a single compatible phone, adding up to 180 additional programmable keys, making it well suited to receptionists, administrative assistants, and contact centre staff managing high call volumes.
Key Features
- 4.3-inch backlit colour LCD, 272 x 480 pixels with 16-bit colour depth
- 20 physical dual-colour LED keys, expandable to 60 programmable functions across 3 pages
- Supports up to 3 daisy-chained modules, adding up to 180 additional buttons
- USB 2.0 ports for data and peripherals, supporting wired/wireless headsets and USB call recording
- Customisable wallpaper and screensaver, with power-saving mode
Technical Specifications
| Specification | Detail |
|---|---|
| Model | EXP50 |
| Display | 4.3″ 272 x 480-pixel colour LCD, backlit, 16-bit colour depth |
| Physical Keys | 20 dual-colour LED programmable keys (60 total across 3 pages) |
| Page Switching | 3 independent illuminated control keys |
| Compatible Phones | Yealink T52S, T53, T53W, T54S, T54W, T56A, T57W, T58A, T58V, T58W, VP59, MP56, MP58 |
| Expandability | Up to 3 modules per phone (up to 180 additional buttons) |
| Power | External Yealink 5V/2A power adapter required when using 2 or 3 modules |
| Max Power Consumption (PSU) | 1.5W |
| Ports | USB 2.0 (data in/out); USB 2.0 (wired/wireless headset, USB call recording, Wi-Fi via WF40/WF50 on T53) |
| Dimensions (W x D x H x T) | 196.5 x 124.0 x 137.5 x 42.6 mm |
| Operating Temperature | -10°C to 50°C (14°F to 122°F) |
| Operating Humidity | 10%–95% |
| Package Contents | EXP50 module, stand, connecting sheet, USB cable, screwdriver, screws, quick start guide |
Best Suited For
- Receptionists and administrative staff monitoring a large number of contacts and lines
- Contact centre environments needing quick access to BLF, speed dial, and call-handling functions at scale
- Businesses with Yealink T5 series or MP-series Teams phones looking to expand programmable key capacity
