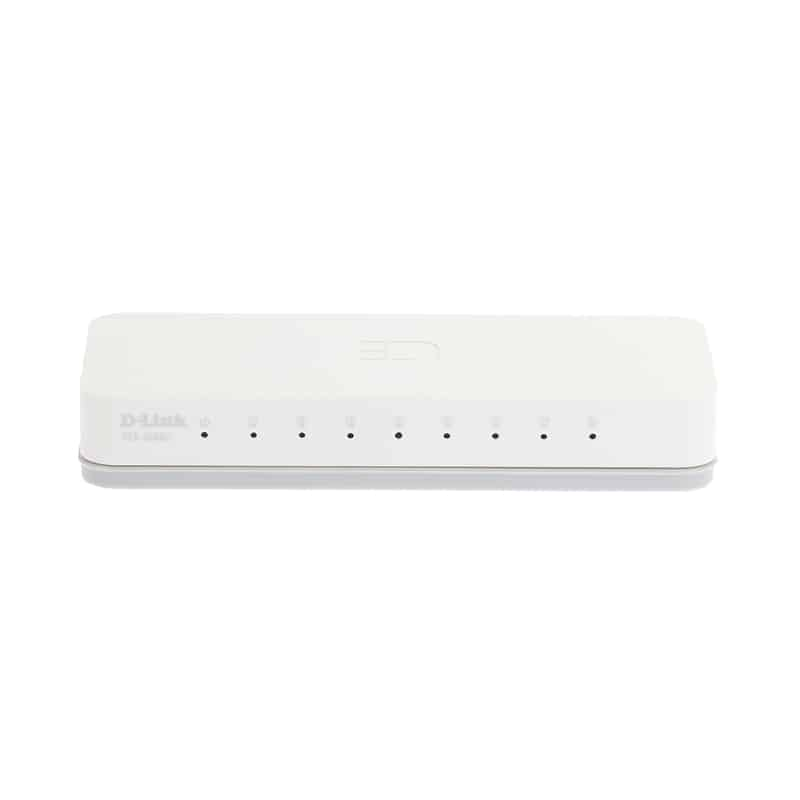

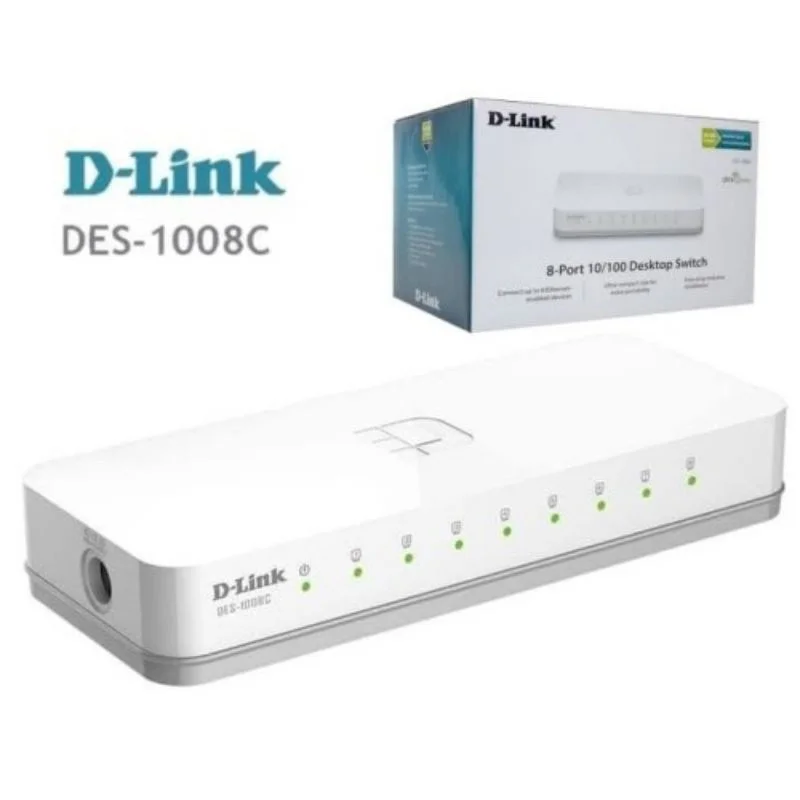

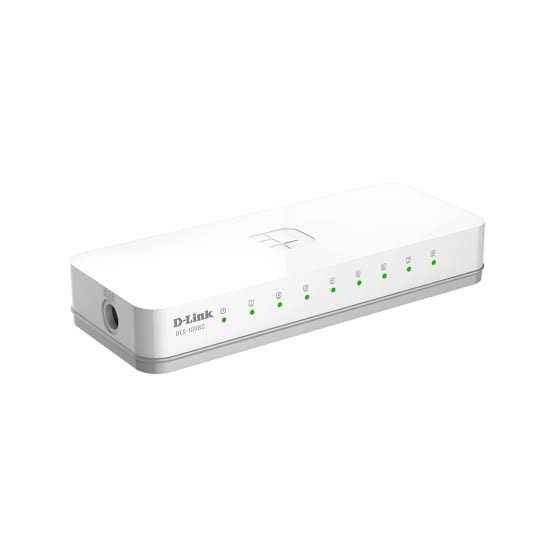

D-Link DES-1008C/B 8-Port 10/100Base-T Unmanaged Switch
The D-Link DES-1008C/B is an economical, plug-and-play unmanaged switch built for home offices, SOHO setups, and small businesses that need to expand a wired network without any configuration. It provides eight 10/100Mbps Fast Ethernet ports, supporting data transfer speeds of up to 200Mbps at full duplex, and Auto MDI/MDIX crossover means any standard cable works without needing a special uplink port. The switch implements 802.3az Energy Efficient Ethernet (EEE), automatically reducing power to ports when a connected device is off or idle, and further optimizes power draw based on cable length. With no fan and low power consumption, it runs silently and stays cool even in continuous use.
Key Features

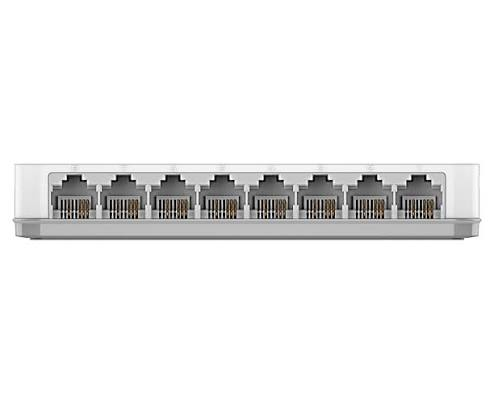

- 8 x 10/100Base-TX Fast Ethernet ports, supporting up to 200Mbps at full duplex
- Auto MDI/MDIX crossover, working with any standard Ethernet cable without special uplink ports
- 802.3az Energy Efficient Ethernet, automatically reducing power to idle or disconnected ports
- Fanless, silent operation, with maximum power consumption of just 1.55W
- Plug-and-play setup, requiring no configuration for immediate use
Technical Specifications
| Specification | Detail |
|---|---|
| Model | DES-1008C/B |
| Interfaces | 8 x 100Base-TX |
| Auto MDI/MDIX | Yes |
| Switching Capacity | 1.6 Gbps |
| Max Packet Forwarding Rate | 1.19 Mpps |
| Store & Forward Switching | Yes |
| Packet Buffer Size | 96 KBytes |
| MAC Address Table Size | 2,000 |
| Flow Control | 802.3x |
| Head-of-Line (HOL) Blocking Prevention | Yes |
| Jumbo Frame Support | 2048 Bytes |
| Energy Efficient Ethernet (EEE) | Yes (802.3az) |
| Power Saving by Link Status | Yes |
| Fan | Fanless |
| Power Input | DC 5V, 0.55A |
| Maximum Power Consumption | 1.55W |
| Standby Power Consumption | 0.55W |
| Maximum Heat Dissipation | 0.691 BTU/h |
| MTBF | 1,579,582 hours |
| Dimensions | 131 x 54 x 21 mm |
| Weight | 742g |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity | 10% to 90% RH |
| Storage Humidity | 5% to 95% non-condensing |
Best Suited For
- Home offices needing to expand a wired network beyond a router’s built-in ports
- Small businesses and SOHO setups connecting multiple desktops, printers, or network devices
- Anyone wanting a silent, energy-efficient switch, thanks to fanless design and low standby power draw
