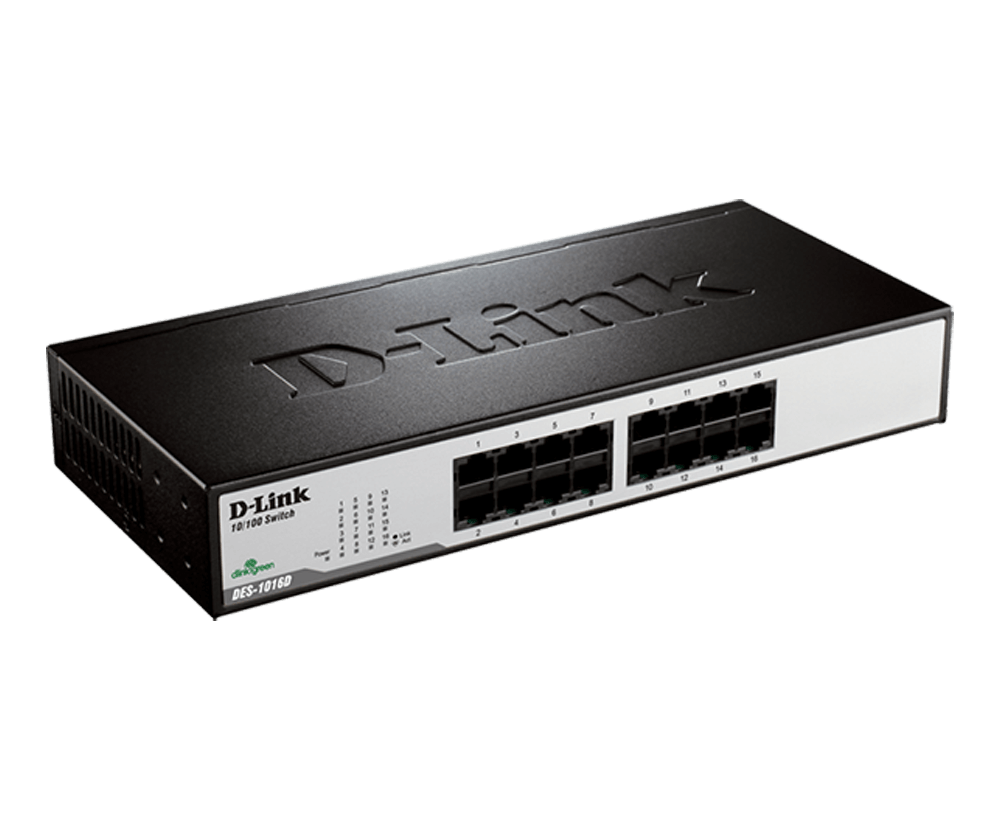

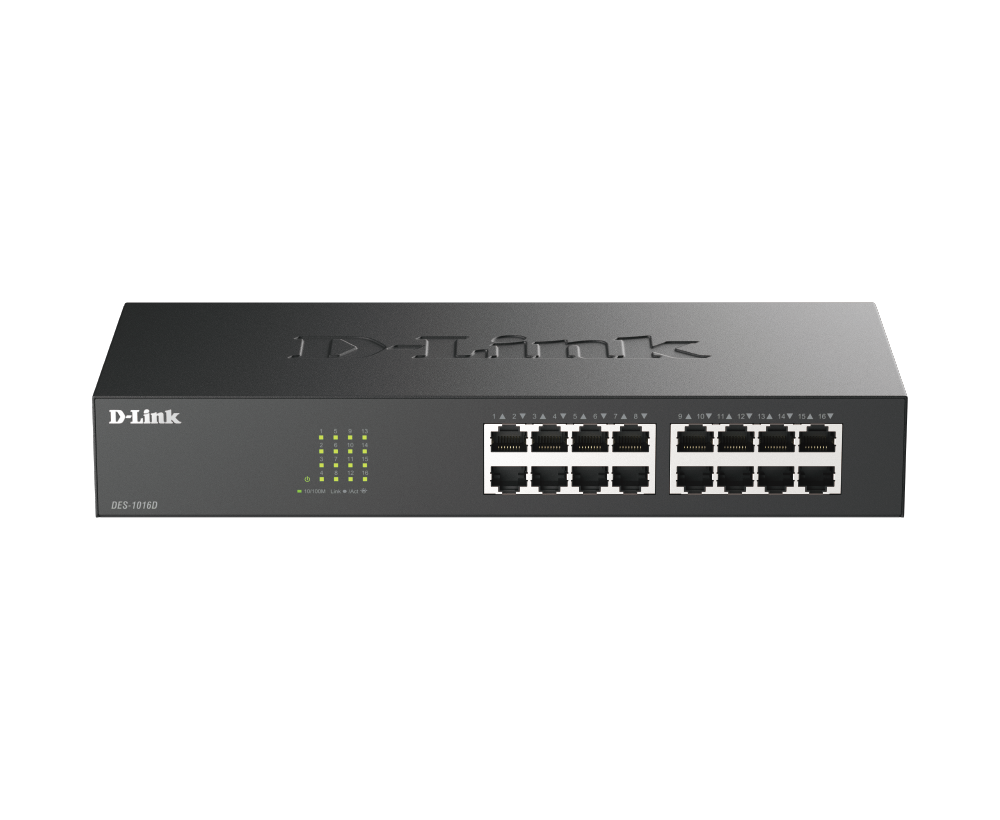

D-Link DES-1016D 16-Port 10/100M Fast Ethernet Unmanaged Desktop Switch
The D-Link DES-1016D is a 16-port unmanaged Fast Ethernet switch built for SOHO and small-to-medium business networks that need to expand beyond a router’s built-in ports. Each of the 16 auto-sensing 10/100Mbps ports automatically negotiates network speed and duplex mode, and Auto MDI/MDIX crossover means any standard cable connects directly to a server, hub, or another switch without needing a dedicated uplink port or crossover cable. With store-and-forward switching and a 3.2Gbps switching capacity, the DES-1016D keeps data moving reliably across a busy workgroup. Its durable metal housing supports both desktop and rack-mount placement, and the fanless design keeps operation completely silent.
Key Features
- 16 auto-sensing 10/100Mbps ports, supporting up to 200Mbps per port in full-duplex mode
- Auto MDI/MDIX crossover, eliminating the need for crossover cables or dedicated uplink ports
- Store-and-forward switching with 3.2Gbps switching capacity, for efficient, reliable data transfer
- Durable metal housing, supporting both desktop placement and rack mounting
- Fanless, silent operation, ideal for office environments where noise matters
Technical Specifications
| Specification | Detail |
|---|---|
| Model | DES-1016D |
| Port Type | 16 x 100Base-TX Fast Ethernet |
| Form Factor | Desktop / Rackmountable |
| Housing | Metal |
| Switching Capacity | 3.2 Gbps |
| Transmission Method | Store-and-Forward |
| MAC Address Table Size | 8K |
| QoS Queues per Port | 4 |
| Fan | Fanless |
| D-Link Green / 802.3az EEE Support | Yes |
| Type | Unmanaged |
Best Suited For
- Small offices and workgroups needing to connect multiple computers, printers, and servers on one network
- Businesses expanding an existing network, adding capacity beyond a router’s built-in ports
- Environments requiring silent operation, thanks to the completely fanless design
