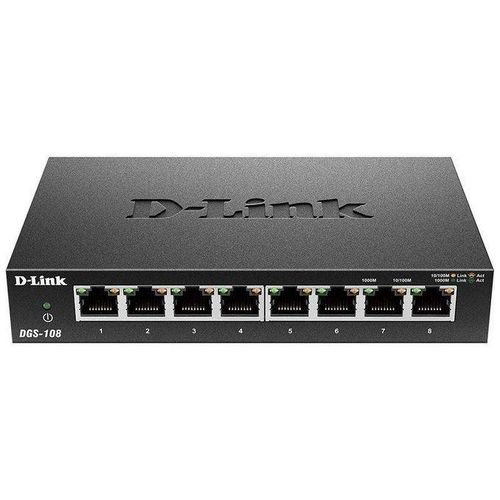

D-Link DGS-108/B 8-Port Gigabit Unmanaged Desktop Switch
The D-Link DGS-108 is an 8-port unmanaged Gigabit Ethernet switch built for homes, small offices, and departments that need instant wired connectivity without touching a configuration menu. It delivers a 16 Gbps switching capacity across all ports, so it moves file transfers, backups, and streaming traffic without becoming a bottleneck. Every port runs at 1000BASE-T Gigabit speeds with auto MDI/MDIX, which means installers can plug in any standard network cable without worrying about crossover wiring. In addition, the DGS-108 uses a fanless metal housing, so it runs silently and holds up well in Nairobi’s warmer office environments where dust and heat shorten the life of fan-cooled equipment. Because it is fully plug-and-play, small businesses in Westlands, Kilimani, or upcountry branch offices can extend a network in minutes, whether adding desks, security cameras, or a VoIP phone system to an existing setup.
Key Features
- 8 x Gigabit Ethernet ports (1000BASE-T) with auto-negotiation for instant plug-and-play expansion
- 16 Gbps non-blocking switching capacity for smooth simultaneous multi-device traffic
- Fanless metal housing for silent, dust-resistant operation in warm office environments
- 802.1p QoS with 4 priority queues per port, helping VoIP calls and video stay smooth on a busy network
- 802.3az Energy-Efficient Ethernet (EEE) support, which lowers power draw on idle or short-cable ports
Technical Specifications
| Specification | Detail |
|---|---|
| Model Number | DGS-108/B |
| Type | Unmanaged |
| Form Factor | Desktop |
| Housing | Metal, fanless |
| Number of Ports | 8 x 10/100/1000BASE-T Gigabit Ethernet |
| Switching Capacity | 16 Gbps |
| Standards Supported | IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1p, 802.3az |
| Media Interface | Auto MDI/MDIX on all ports |
| Transmission Method | Store-and-forward |
| Data Transfer Rate (per port) | Up to 2000 Mbps full-duplex (Gigabit) |
| Packet Forwarding Rate | 1,488,000 pps (Gigabit Ethernet) |
| MAC Address Table | 4K entries, automatic learning |
| RAM Buffer | 192 KB |
| QoS Queues per Port | 4 |
| Jumbo Frame Support | Yes |
| Cable Diagnostics | Yes |
| D-Link Green Technology | Yes |
| Energy-Efficient Ethernet (EEE) | 802.3az supported |
| LEDs | Power (per unit), Link/Activity (per port) |

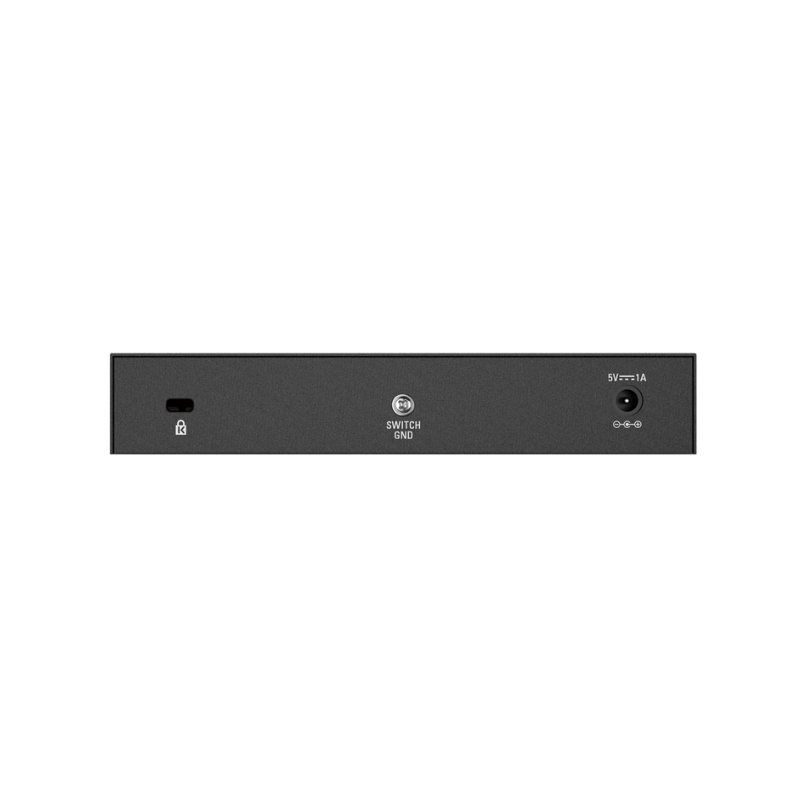

| Power Input | 5V / 1A external adapter |
| Max. Power Consumption | 5.12 W (AC input) |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -10°C to 70°C |
| Operating Humidity | 0% to 95%, non-condensing |
| MTBF | 1,467,882 hours |
| Heat Dissipation | Max. 17.47 BTU/h |
| Dimensions | 138.65 x 85 x 22.4 mm |
| Weight | 270 grams |
| Certifications | FCC Class B, CE Class B, ICES-003 Class B, KCC, RCM, CCC, BSMI, LVD |
Best Suited For
- Home offices and SOHO setups that need to add reliable wired ports for PCs, NAS drives, or gaming consoles without configuring anything
- Small business departments connecting IP phones, printers, and workstations where QoS keeps calls and file transfers running smoothly
- CCTV and networking installers who need a compact, fanless expansion switch to extend camera or access-point runs in tight equipment cabinets
