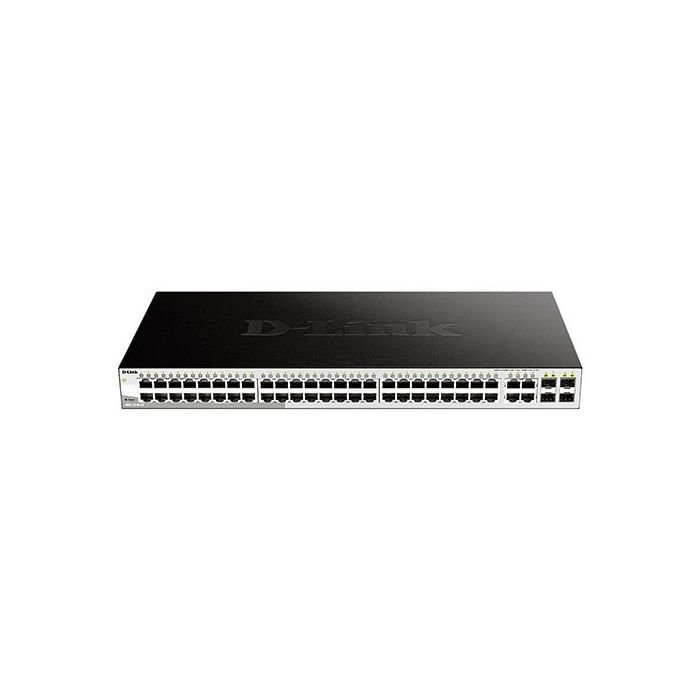

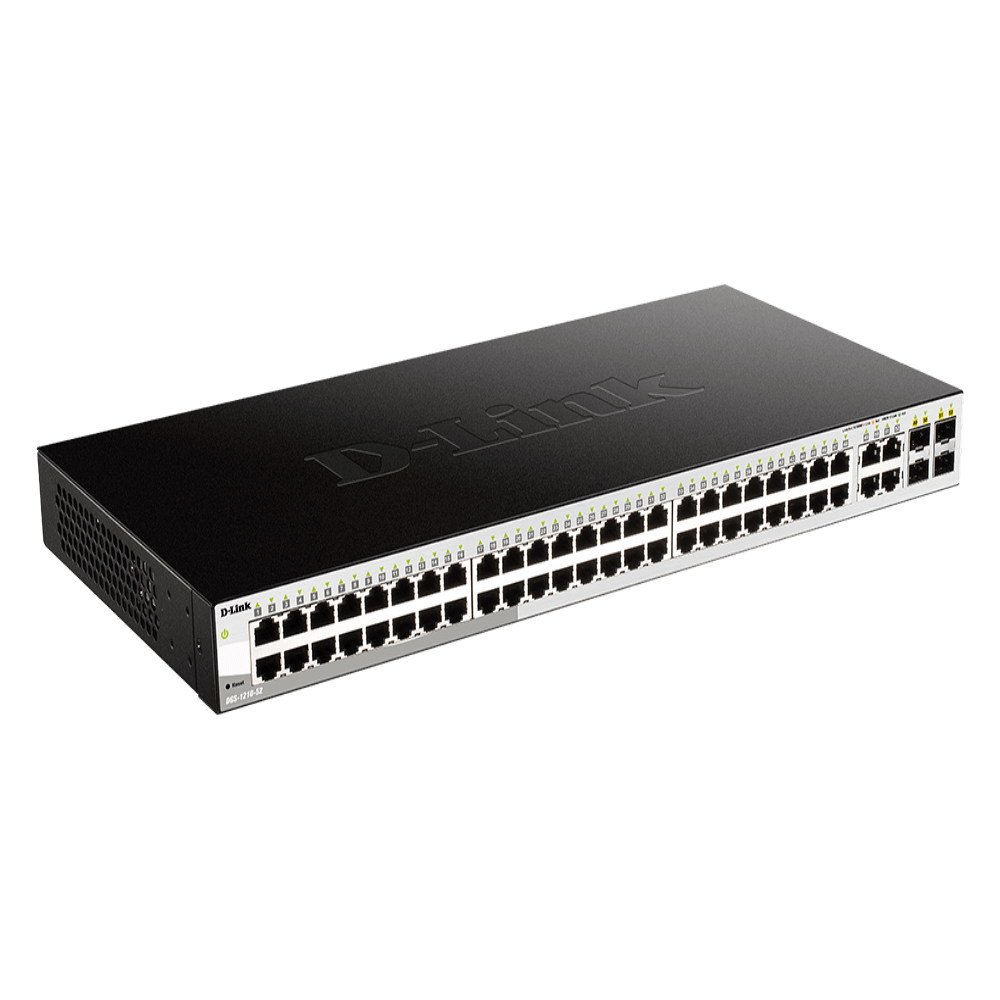

D-Link DGS-1210-52MP 48-Port Gigabit Smart Managed PoE Switch + 4 SFP
The D-Link DGS-1210-52MP is a 48-port Gigabit smart managed PoE switch built for large networks that need to power a substantial fleet of cameras, phones, and access points from a single device. It provides 48 PoE+ Gigabit ports supporting IEEE 802.3af/at, backed by a generous 370W total PoE power budget. Power delivery is tiered by port: ports 1-8 support up to 30W (802.3at) for high-draw devices like PTZ cameras, while ports 9-48 support up to 15.4W (802.3af) for standard cameras and phones. With a 104 Gbps switching capacity and a 77.4 Mpps forwarding rate, the switch handles heavy simultaneous traffic across all 48 ports without slowing down. As a genuine smart managed switch, it supports a full Layer 2+ feature set — VLANs, Spanning Tree Protocol, Link Aggregation, and static routing — plus a larger 16K MAC address table for tracking more connected devices than the smaller DGS-1210 models. Four Gigabit RJ45/SFP combo ports complete the interface for a fiber uplink to a core switch. This combination of port density, power budget, and Layer 2+ management suits large Kenyan offices, business parks, and institutions running extensive CCTV or Wi-Fi networks that need centralized power delivery and traffic control.
Key Features
- 48 x Gigabit PoE+ ports (802.3af/at) with a 370W total PoE power budget
- Tiered power delivery — up to 30W on ports 1-8, up to 15.4W on ports 9-48
- 4 x Gigabit RJ45/SFP combo ports for flexible copper or fiber uplinks
- 104 Gbps switching capacity with a 77.4 Mpps forwarding rate for high-density traffic
- Smart managed Layer 2+ features — VLANs, Spanning Tree Protocol, Link Aggregation, and static routing
Technical Specifications
| Specification | Detail |
|---|---|
| Model Number | DGS-1210-52MP |
| Interfaces | 48 x 10/100/1000BASE-T PoE ports, 4 x Gigabit RJ45/SFP combo ports |
| PoE Standard | IEEE 802.3af / 802.3at |
| PoE Power Budget | 370 W total |
| Max PoE per Port | 30 W (ports 1-8), 15.4 W (ports 9-48) |
| Switching Capacity | 104 Gbps |
| Max. Packet Forwarding Rate | 77.4 Mpps |
| MAC Address Table | 16K entries |
| Transmission Method | Store-and-forward |
| Media Interface | Auto MDI/MDIX on all twisted-pair ports |
| Advanced VLAN | 802.1Q VLAN, Auto Voice VLAN, Auto Surveillance VLAN |
| Security Features | ACL, 802.1X/RADIUS, ARP Spoofing Prevention, D-Link Safeguard Engine |
| Management | Web GUI, D-Link Network Assistant, Compact CLI, SNMP |
| Mounting | 19″ rack mountable, brackets included |
| Power Input | 100 to 240V AC, 50/60Hz, internal power supply |
| Dimensions | 440 x 430 x 44 mm |
| Weight | 6.26 kg |
| Certifications | CE Class A, VCCI Class A, FCC Class A, BSMI, C-Tick, cUL |
Best Suited For
- Large-scale CCTV installations running 30+ cameras, using ports 1-8 for high-power PTZ units and the rest for fixed cameras
- Business parks and multi-tenant buildings consolidating cameras, access points, and phones from many rooms onto one managed switch
- IT administrators needing both power capacity and VLAN control, since the 370W budget and Layer 2+ routing support complex, high-density networks
