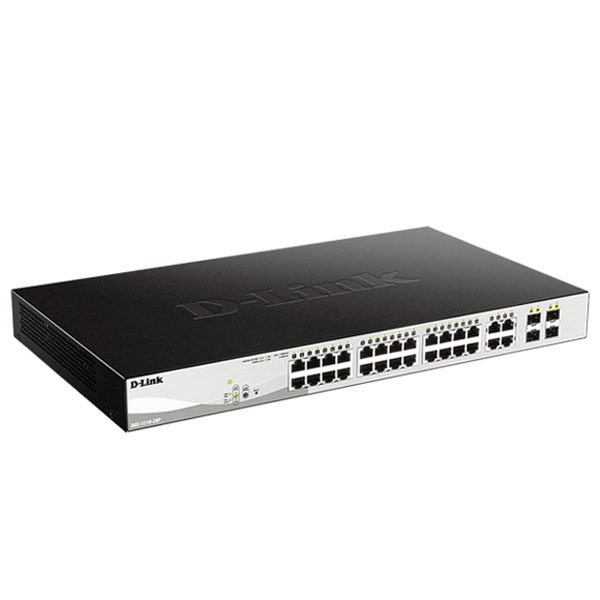

D-Link DGS-F1210-26PS-E 24-Port Managed Gigabit PoE Switch + 2 SFP
The D-Link DGS-F1210-26PS-E is a 24-port Layer 2 managed Gigabit PoE switch built for medium-sized surveillance and business networks that need both power capacity and genuine traffic control. It provides 24 PoE ports supporting IEEE 802.3af/at, backed by a 250W total PoE power budget with up to 30W per port, enough to run a substantial mix of IP cameras, wireless access points, and VoIP phones. A key differentiator is its Long Reach PoE technology on 8 of the 24 ports, which extends power and data delivery up to 250 meters, well beyond the standard 100m Ethernet limit, so installers can dedicate those ports to distant perimeter cameras while using the remaining ports for closer devices. With a 52 Gbps switching capacity and roughly 38.7 Mpps forwarding rate, the switch handles a fully loaded 24-port deployment without becoming a bottleneck. As a managed switch, it supports VLAN, QoS, and Extend mode configuration, giving administrators the tools to segment surveillance traffic from general data. Two Gigabit SFP uplink ports complete the interface for a fiber connection to a core switch or NVR. This combination suits growing Kenyan businesses, gated estates, and institutions running structured CCTV deployments that need more than an unmanaged switch but don’t require a full enterprise platform.
Key Features
- 24 x Gigabit PoE ports (802.3af/at) with up to 30W per port and a 250W total power budget
- Long Reach PoE on 8 ports, extending power and data delivery up to 250 meters
- 2 x Gigabit SFP uplink ports for fiber connectivity to a core switch or NVR
- 52 Gbps switching capacity with roughly 38.7 Mpps forwarding rate for smooth full-load performance
- VLAN, QoS, and Extend mode management via DIP switches and a managed web interface
Technical Specifications
| Specification | Detail |
|---|---|
| Model Number | DGS-F1210-26PS-E |
| Type | Layer 2 Managed |
| Network Interface | 24 x 10/100/1000 Mbps PoE RJ45 ports, 2 x Gigabit SFP ports |
| Console Port | RJ45 |
| PoE Standard | IEEE 802.3af / 802.3at |
| PoE Power Budget | 250 W total |
| Max PoE Output per Port | Up to 30 W |
| Long Reach PoE (Extend Mode) | Up to 250 m (8 ports) |
| Switching Capacity | 52 Gbps |
| Max. Packet Forwarding Rate | ~38.7 Mpps |
| DIP Switch Modes | VLAN, Extend, PoE, QoS |
| Media Interface | Auto MDI/MDIX on all ports |
| Standards Supported | IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3af/at, 802.3x |
| Mounting | 1U rackmountable |
| Flow Control | IEEE 802.3x |
| Installation | Plug-and-play |
Best Suited For
- Medium-scale CCTV installations covering up to 24 cameras, using the Long Reach ports for distant perimeter units
- Gated estates and commercial buildings needing a fiber uplink to a central NVR alongside dense local PoE coverage
- IT installers scaling beyond unmanaged switches, using VLAN and QoS settings to keep surveillance traffic separated from general data
