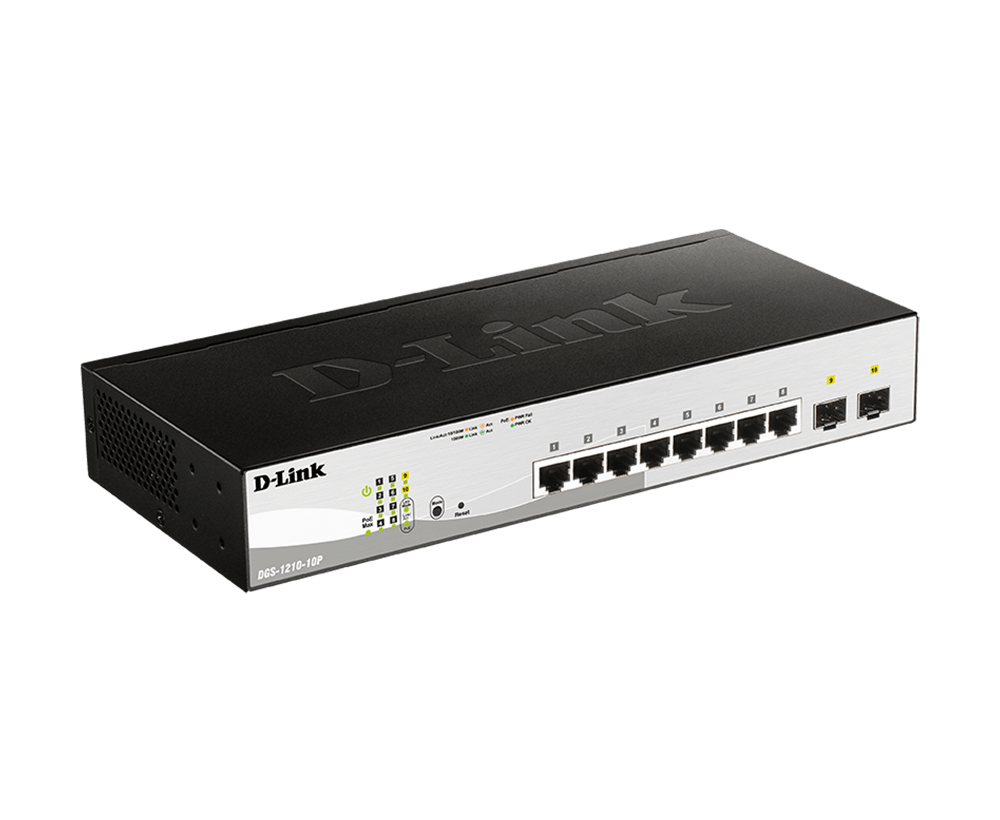

D-Link DGS-1210-10P 8-Port Gigabit PoE + 2 SFP Smart Managed Switch
The D-Link DGS-1210-10P is an 8-port Gigabit PoE smart managed switch with 2 additional SFP ports, built for businesses that need both local PoE device support and the option to extend the network over fiber. It offers a 20 Gbps switching capacity and a 65W PoE power budget, supporting both 802.3af and 802.3at standards so it can power everything from basic IP phones to higher-draw PTZ cameras. Because it includes 2 Gigabit SFP ports, network installers can run a fiber uplink to a second building or floor without sacrificing any of the 8 copper PoE ports for that connection. In addition, the DGS-1210-10P supports Layer 2+ static routing, Auto Surveillance VLAN, and Auto Voice VLAN, so CCTV footage and VoIP calls automatically get segmented and prioritized without manual configuration. This combination makes it a practical fit for Kenyan businesses expanding beyond a single switch, such as retail chains linking a shop floor to a back office, or estates in Ruaka and Kilimani running cameras across multiple buildings on one network backbone.
Key Features
- 8 x Gigabit PoE ports (802.3af/802.3at) plus 2 x Gigabit SFP ports, giving a 65W PoE budget alongside fiber uplink flexibility
- 20 Gbps switching capacity with a 14.88 Mpps maximum forwarding rate for smooth multi-device traffic
- Layer 2+ static routing for communication between different VLAN segments without an external router
- Auto Surveillance VLAN and Auto Voice VLAN that automatically prioritize camera and VoIP traffic
- Fanless metal housing rated for -5°C to 50°C operation, suited to warmer equipment rooms
Technical Specifications
| Specification | Detail |
|---|---|
| Model Number | DGS-1210-10P |
| Interfaces | 8 x 10/100/1000BASE-T PoE ports, 2 x Gigabit SFP ports |
| Switch Capacity | 20 Gbps |
| Max. Packet Forwarding Rate | 14.88 Mpps |
| PoE Standard | IEEE 802.3af / 802.3at |
| PoE Power Budget | 65 W |
| CPU Speed | 500 MHz |
| DRAM Size | DDR3, 128 MB |
| Flash Memory Size | 32 MB |
| Packet Buffer Size | 4.1 Mbits |
| Fan | Fanless |
| Acoustic Noise | 0 dB |
| Power Input | 100 to 240 V AC |
| Max Power Consumption (PoE on) | 89.1 W (100V) / 80.6 W (240V) |
| Max Power Consumption (PoE off) | 7.6 W (100V) / 7.5 W (240V) |
| Standby Power Consumption | 2.5 W (100V and 240V) |
| Maximum Heat Dissipation | 279.59 BTU/hr (100V) / 275.04 BTU/hr (240V) |
| Operating Temperature | -5°C to 50°C (23°F to 122°F) |
| Storage Temperature | -20°C to 70°C |
| Operating Humidity | 0%–95% RH |
| Storage Humidity | 0%–95% RH |
| Operating Altitude | 1,500 m |
| MTBF | 729,258 hours |
| Dimensions | 280 x 126 x 44 mm |
| Weight | 0.95 kg |
Best Suited For
- Multi-building or multi-floor networks that need a fiber SFP uplink alongside local PoE ports for cameras or access points
- CCTV installers deploying PTZ or high-draw cameras, since 802.3at support delivers enough power per port for demanding devices
- SMEs running combined voice, video, and data traffic on one switch, using Auto Voice VLAN and Auto Surveillance VLAN to keep each type of traffic isolated and prioritized
