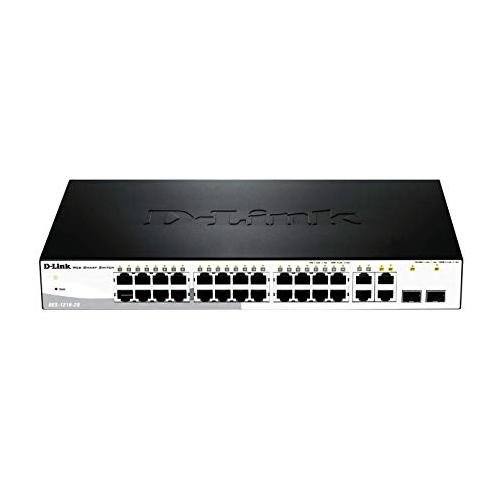

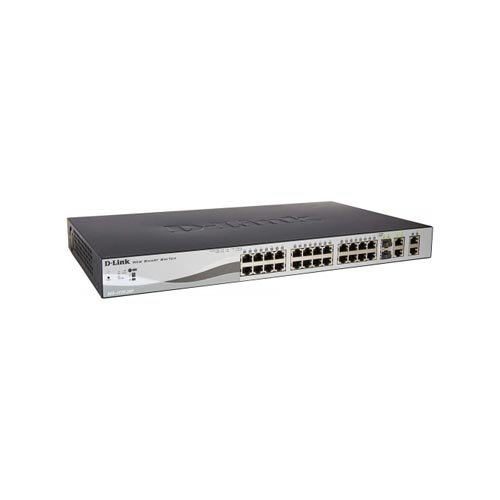

D-Link DES-1210-28P 24-Port Fast Ethernet PoE Switch
The D-Link DES-1210-28P is a Web Smart PoE switch built for small and medium businesses needing to power and network IP cameras, VoIP phones, and wireless access points from a single unit. It provides 24 x 10/100BASE-TX PoE ports, plus 2 x 10/100/1000BASE-T ports and 2 x Combo 10/100/1000BASE-T/SFP ports for Gigabit uplinks. The switch delivers a 193W total PoE power budget, supporting 802.3at (up to 30W per port) on the first 4 ports and 802.3af (up to 15.4W per port) on ports 5 through 24 — enough to cover a full IP camera or VoIP phone deployment. Management is handled through SNMP, Web Management, SmartConsole Utility, or command line, and Layer 2 features include IGMP Snooping, Port Mirroring, Spanning Tree, and Link Aggregation Control Protocol (LACP).
Key Features
- 24 PoE ports with a 193W total power budget, supporting both 802.3at (30W) and 802.3af (15.4W) devices
- 2 Gigabit ports plus 2 Gigabit/SFP combo ports, providing flexible high-speed uplink options
- Web Smart management, accessible via SNMP, Web UI, SmartConsole Utility, or CLI
- Advanced Layer 2 features, including IGMP Snooping, Port Mirroring, STP, and LACP
- Smart Fan technology, activating cooling only when needed for efficient, reliable operation
Technical Specifications
| Specification | Detail |
|---|---|
| Model | DES-1210-28P |
| Main Ports | 24 x 10/100BASE-TX (PoE) |
| Additional Ports | 2 x 10/100/1000BASE-T; 2 x Combo 10/100/1000BASE-T/SFP |
| PoE Standards | 802.3at (ports 1–4, up to 30W each); 802.3af (ports 5–24, up to 15.4W each) |
| PoE Power Budget | 193W total |
| Switch Capacity | 12.8 Gbps |
| 64-Byte Packet Forwarding Rate | 9.5 Mpps |
| MAC Address Table | 8K entries |
| Packet Buffer | 512 KB |
| Flash Memory | 16 MB |
| Management | SNMP, Web Management, SmartConsole Utility, Command Line Interface |
| Layer 2 Features | IGMP Snooping, Port Mirroring, Spanning Tree Protocol, LACP, 802.3x Flow Control |
| Cooling | Smart Fan (temperature-activated) |
| Media Interface | Auto MDI/MDIX on all twisted-pair ports |
| Warranty | Typically 3 years (confirm with supplier/region) |
Best Suited For
- IP surveillance deployments, powering multiple PoE cameras directly from the switch without separate injectors
- VoIP phone system rollouts, providing both network connectivity and power to desk phones
- Small to medium businesses, needing manageable Layer 2 features without the cost of a fully managed switch
