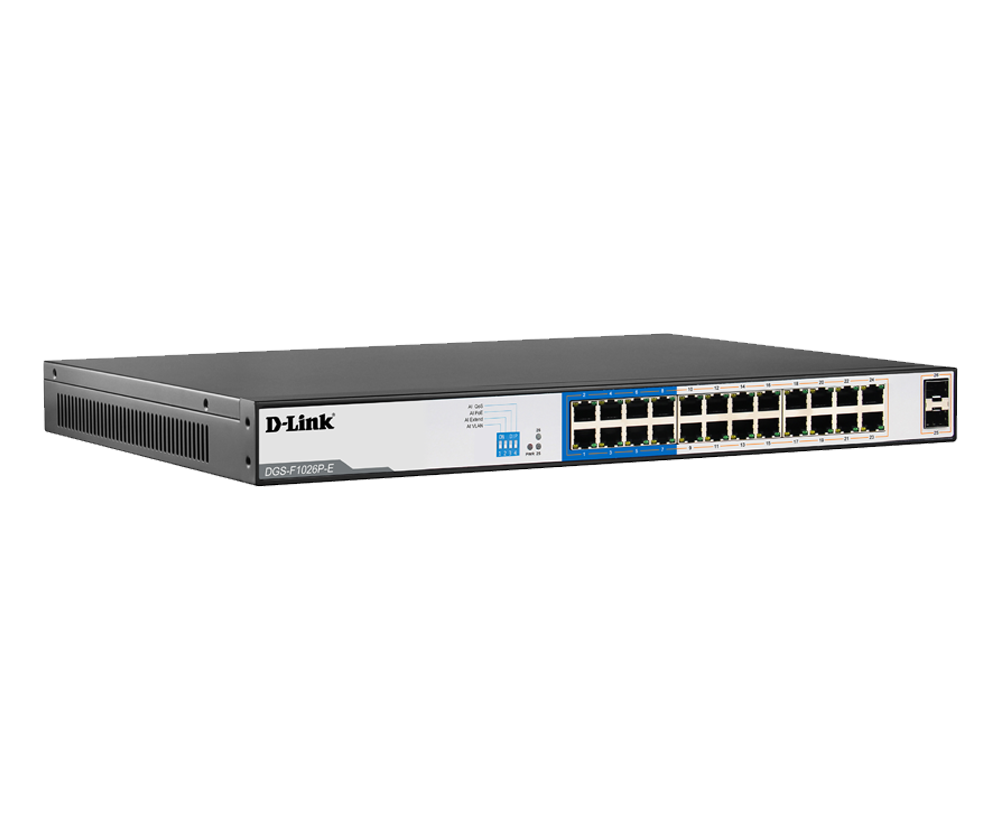

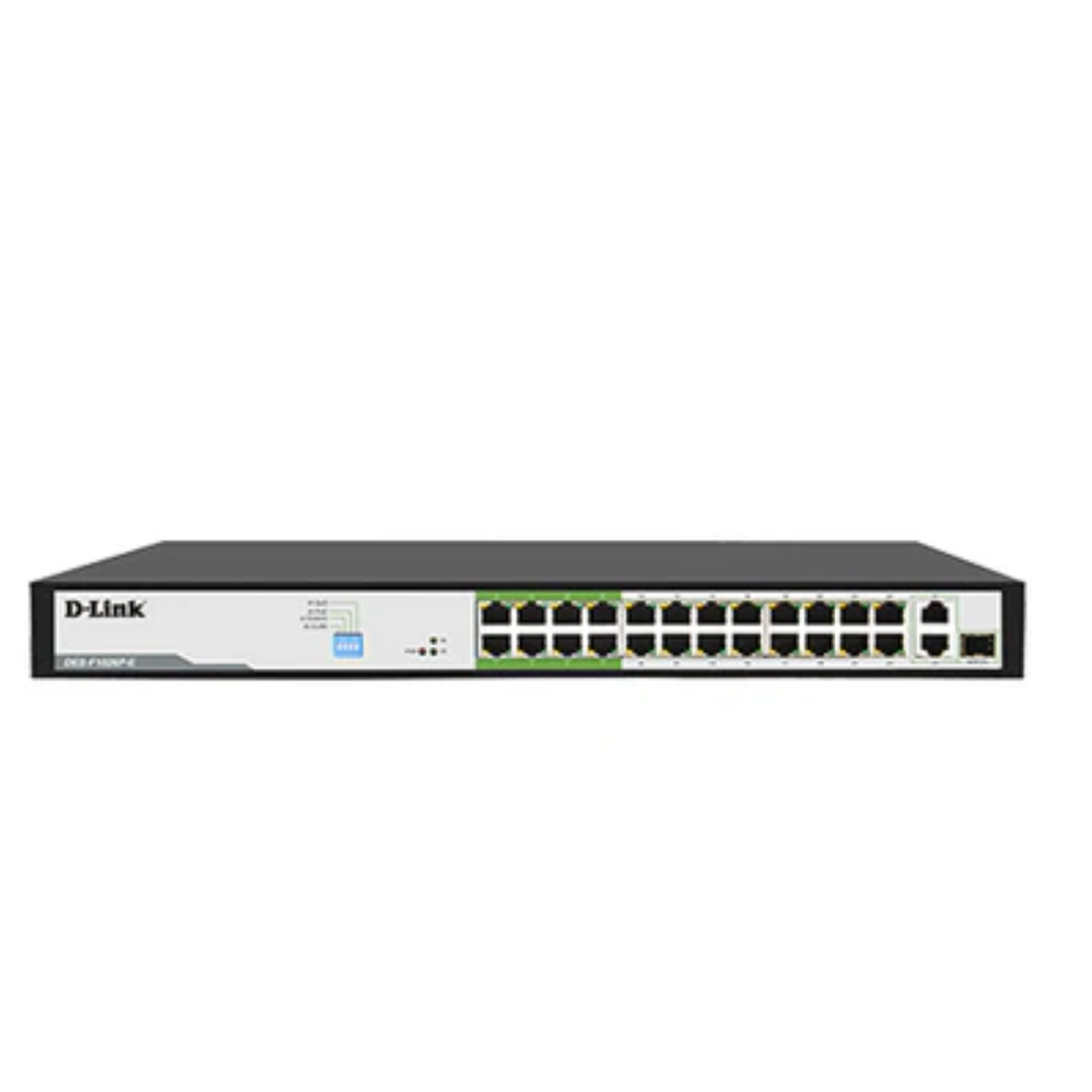

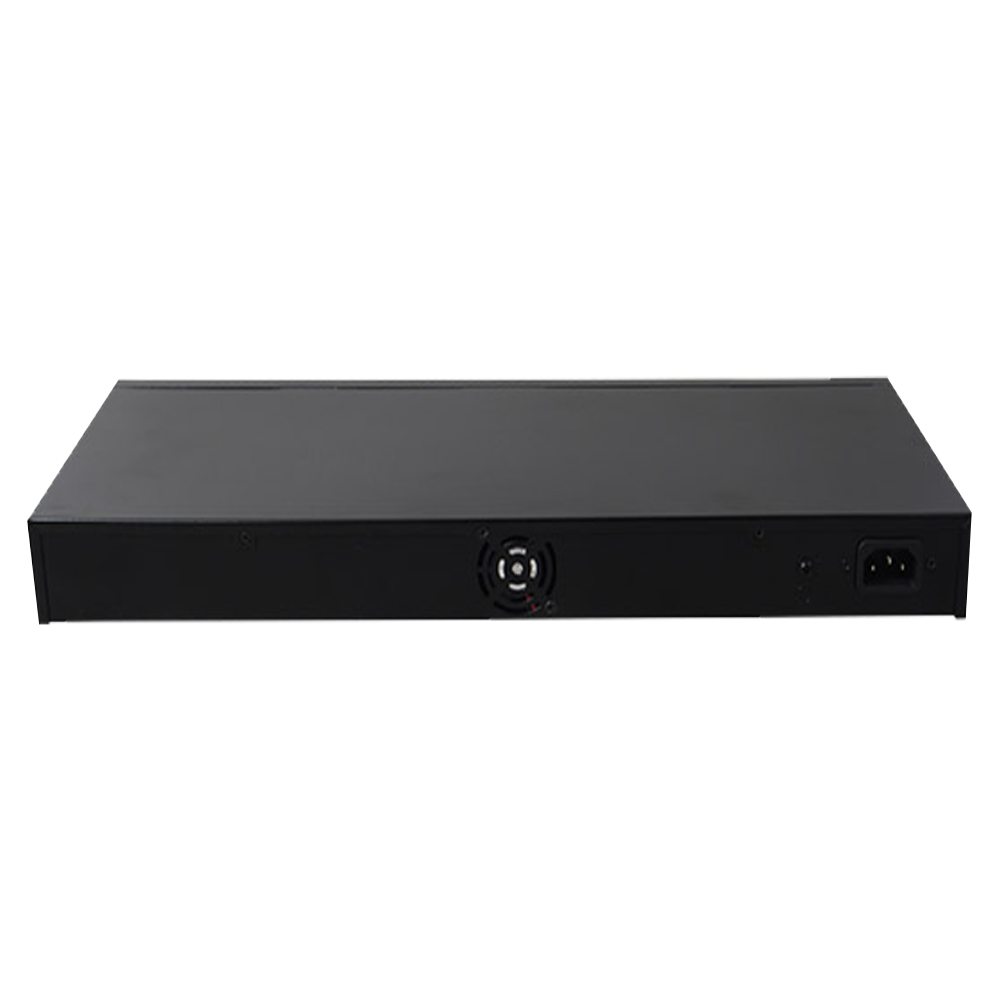

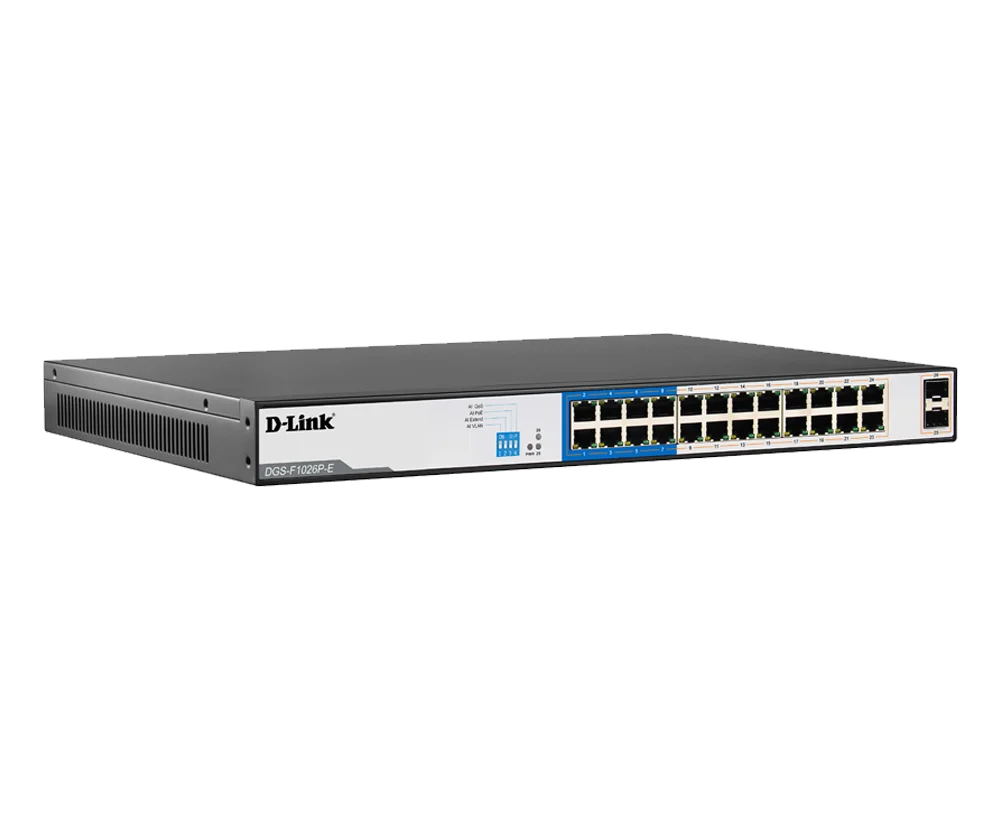

D-Link DGS-F1026P 24-Port Gigabit PoE Switch + 2 SFP (250m Support)
The D-Link DGS-F1026P is a 24-port Gigabit PoE switch designed for medium-sized camera and access-point deployments that need serious power capacity in one device. It provides 24 PoE/PoE+ ports supporting IEEE 802.3af/at, delivering up to 30W per port and a 250W total PoE power budget, enough to run two dozen mid-range IP cameras or a mix of cameras, phones, and access points simultaneously. A standout detail is that ports 1-8 support Long Reach Extend mode, pushing power and data up to 250 meters at a reduced 10Mbps, while the remaining ports 9-24 operate at standard Gigabit distances. Consequently, installers can dedicate the first 8 ports to distant perimeter cameras and use the rest for closer devices on the same switch. Two Gigabit SFP uplink ports round out the interface, giving a fiber path back to a core switch or NVR without consuming any of the 24 copper ports. Built with 6kV surge protection and a 52 Gbps switching fabric, the DGS-F1026P suits medium businesses, gated estates, and commercial buildings across Nairobi and beyond that are scaling up CCTV or Wi-Fi coverage without moving to a fully managed switch.
Key Features
- 24 x Gigabit PoE/PoE+ ports (802.3af/at) with up to 30W per port and a 250W total power budget
- Long Reach Extend mode on ports 1-8, supporting power and data delivery up to 250 meters
- 2 x Gigabit SFP uplink ports for a fiber connection to a core switch or NVR
- 52 Gbps switching fabric for smooth handling of traffic across all 24 ports
- 6kV surge protection, guarding connected devices against lightning and power spikes
Technical Specifications
| Specification | Detail |
|---|---|
| Model Number | DGS-F1026P |
| Size | Desktop (with mounting kit) |
| Network Interface | 24 x 10/100/1000BASE-T ports, 2 x SFP |
| PoE Standard | IEEE 802.3af / 802.3at |
| PoE Power Budget | 250 W total |
| Max PoE Output per Port | Up to 30 W |
| Long Reach PoE (Extend Mode) | Ports 1-8, up to 250 m at 10Mbps |
| Switching Fabric | 52 Gbps |
| Transmission Method | Store-and-forward |
| Media Interface | Auto MDI/MDI-X on all ports |
| Data Transfer Rates | Gigabit Ethernet 1000 Mbps, Ethernet 100 Mbps |
| Surge Protection | 6 kV |
| Standards Supported | IEEE 802.3u, 802.3af/at, 802.3ab, 802.3az, 802.3x, 802.3z |
| Operating Modes | Extend, VLAN (port isolation), QoS, PoE (DIP switch selectable) |
| Type | Unmanaged |
| Total Power | 250 W |
| Operating Humidity | 0%–95% RH, non-condensing |
| Storage Humidity | 0%–95% RH, non-condensing |
| Dimensions | 440 x 180 x 44 mm |
| Weight | 3.0 kg |
Best Suited For
- Medium-scale CCTV installations covering 15-24 cameras, using the Extend ports for distant perimeter units and standard ports for nearby ones
- Gated estates and commercial buildings needing a fiber uplink to a central NVR or core switch alongside dense local PoE coverage
- IT installers scaling up from smaller PoE switches, since the 250W budget comfortably supports a mixed fleet of cameras, phones, and access points
