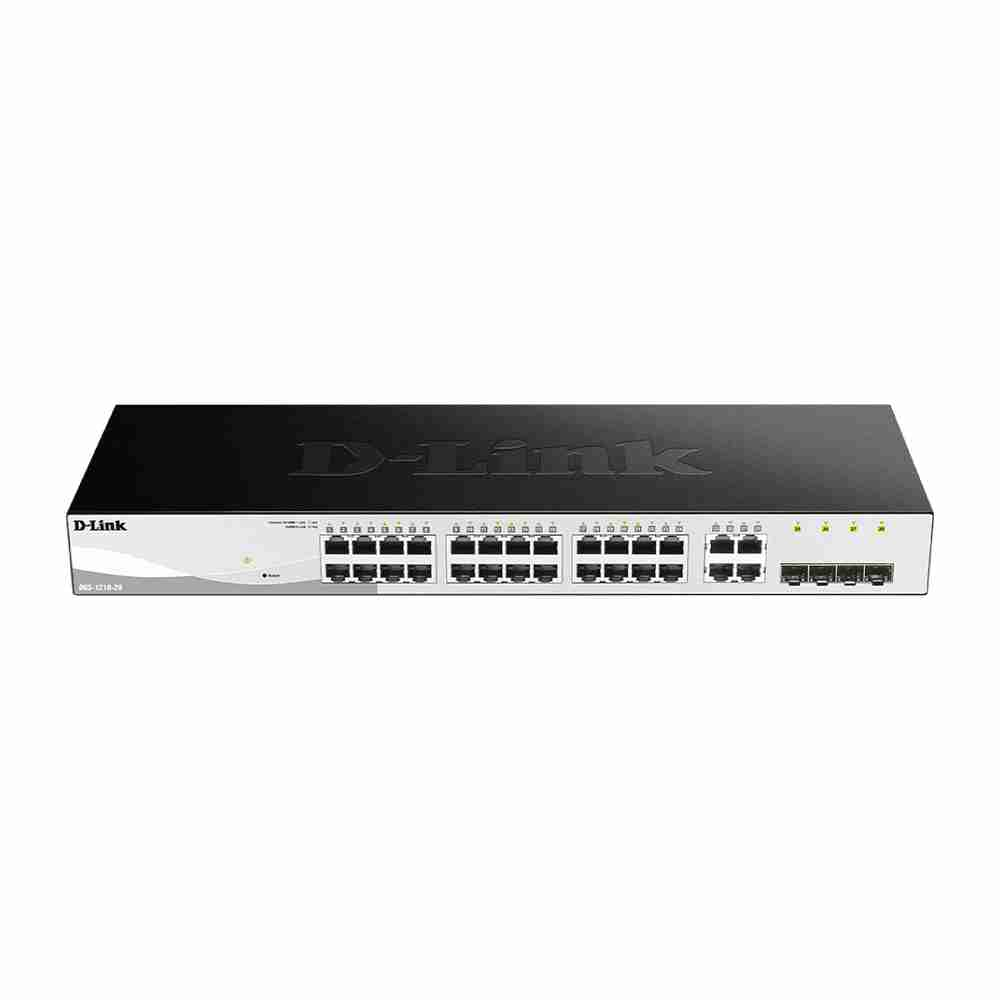

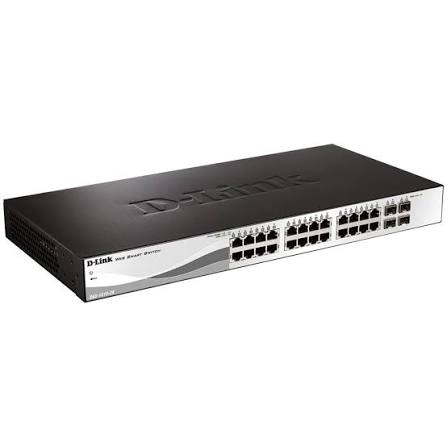

D-Link DGS-1210-28 28-Port Gigabit Smart Managed Switch (Non-PoE)
The D-Link DGS-1210-28 is a 28-port Gigabit smart managed switch built for businesses that need serious Layer 2 network control without the added cost of PoE they don’t require. It combines 24 x 10/100/1000BASE-T copper ports with 4 x Gigabit combo ports that accept either RJ45 or SFP fiber transceivers, giving network designers flexibility on how they connect to a core switch or ISP handoff. With a 56 Gbps switching capacity and a 41.7 Mpps packet forwarding rate, it moves traffic across a fully loaded 28-port network without introducing bottlenecks. Because it is a smart managed switch, it supports VLANs, Spanning Tree Protocol (STP/RSTP/MSTP), Link Aggregation, and Layer 2+ static routing, so administrators can segment traffic between departments, guest networks, and internal systems. In addition, features like Auto Voice VLAN and Surveillance Mode automatically prioritize VoIP and ONVIF camera traffic even without full enterprise-grade configuration. This makes the DGS-1210-28 a practical core or aggregation switch for Kenyan offices, schools, and retail operations that already have separate PoE injectors or PoE cameras with their own power, and simply need dependable, manageable Gigabit connectivity at scale.
Key Features
- 24 x Gigabit copper ports + 4 x Gigabit RJ45/SFP combo ports for flexible copper or fiber uplinks
- 56 Gbps switching capacity with a 41.7 Mpps maximum forwarding rate for high-density traffic
- Smart managed Layer 2+ features — VLANs, Spanning Tree Protocol, Link Aggregation, and static routing
- Auto Voice VLAN and Surveillance Mode for automatic traffic prioritization without complex setup
- Desktop or 19″ rackmount design with mounting brackets included for flexible installation
Technical Specifications
| Specification | Detail |
|---|---|
| Model Number | DGS-1210-28 |
| Mounting Options | Desktop or 19″ rack mount (brackets included) |
| Interfaces | 24 x 10/100/1000BASE-T, 4 x 100/1000 Mbps GbE/SFP combo ports |
| PoE | Not supported (non-PoE model) |
| Switching Capacity | 56 Gbps |
| Max. 64-Byte Packet Forwarding Rate | 41.7 Mpps |
| MAC Address Table | 8K entries |
| Static MAC Addresses | 256 entries |
| Packet Buffer Memory | 4.1 Mbits |
| CPU Memory | DDR3, 128 MB |
| Flash Memory | 32 MB |
| Transmission Method | Store-and-forward |
| Media Interface | Auto MDI/MDIX on all twisted-pair ports |
| Network Cables | UTP Cat.5, Cat.5e (100m max.) |
| Power Input | 100 to 240V AC, 50/60Hz, internal universal power supply |
| Maximum Power Consumption | 17.32 W (100V) / 16.94 W (240V) |
| Standby Power Consumption | 6.49 W (100V) / 6.55 W (240V) |
| Heat Dissipation | 59.09 BTU/hr (100V) / 57.79 BTU/hr (240V) |
| Acoustic Noise | 0 dB(A) |
| Operating Temperature | -5°C to 50°C |
| Storage Temperature | -20°C to 70°C |
| Operating Humidity | 0%–95% RH |
| Storage Humidity | 0%–95% RH |
| Dimensions | 440 x 140 x 44 mm |
| Weight | 2.15 kg |
| MTBF | 992,594 hours |
| Certifications | CE Class A, VCCI Class A, FCC Class A, BSMI, UL, LVD |
Best Suited For
- Offices and schools needing a manageable core switch, using VLANs and Spanning Tree to segment departments or classrooms without PoE overhead
- Businesses already running PoE injectors or self-powered cameras, who need dense Gigabit connectivity and fiber uplink options rather than switch-supplied power
- IT administrators building a fiber-connected network backbone, using the 4 combo ports to link this switch to a core switch or ISP handoff over SFP
