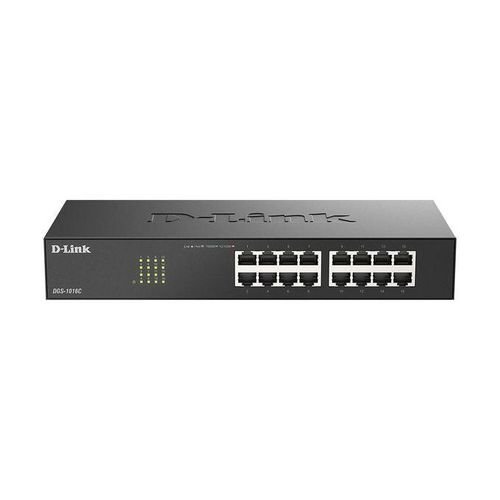

D-Link DGS-1016C/B 16-Port 10/100/1000Base-T Unmanaged Switch
The D-Link DGS-1016C/B brings Gigabit Ethernet speed to every port, giving small offices and workgroups a straightforward way to upgrade a network beyond Fast Ethernet limits. Its 16 x 1000Base-T ports support data transfer speeds of up to 2000Mbps at full duplex, and Auto MDI/MDIX crossover means any standard cable works without needing a dedicated uplink port. The switch implements 802.3az Energy Efficient Ethernet, automatically reducing power to ports with no active link or optimizing power based on cable length, and all ports include up to 4kV surge protection for added network reliability. With a completely fanless design, the DGS-1016C runs silently at just 0dB acoustic output, and requires no configuration for immediate plug-and-play use.
Key Features
- 16 x Gigabit (1000Base-T) ports, supporting up to 2000Mbps at full duplex
- Auto MDI/MDIX crossover, working with any standard Ethernet cable without special uplink ports
- 802.3az Energy Efficient Ethernet, automatically reducing power to idle or disconnected ports
- Fanless, silent operation at 0dB, ideal for shared office spaces
- Plug-and-play setup, requiring no configuration for immediate use
Technical Specifications
| Specification | Detail |
|---|---|
| Model | DGS-1016C/B |
| Interfaces | 16 x 1000Base-T |
| Auto MDI/MDIX | Yes |
| Switching Capacity | 32 Gbps |
| Maximum Forwarding Rate | 23.808 Mpps |
| Packet Buffer Size | 256 KBytes |
| MAC Address Table Size | 8,000 |
| Jumbo Frame Support | 9,216 Bytes |
| Flow Control | 802.3x |
| Head-of-Line (HOL) Blocking Prevention | Yes |
| Energy Efficient Ethernet (EEE) | Yes |
| Power Saving | By link status and cable length |
| Fan | Fanless |
| Acoustic Output | 0 dB |

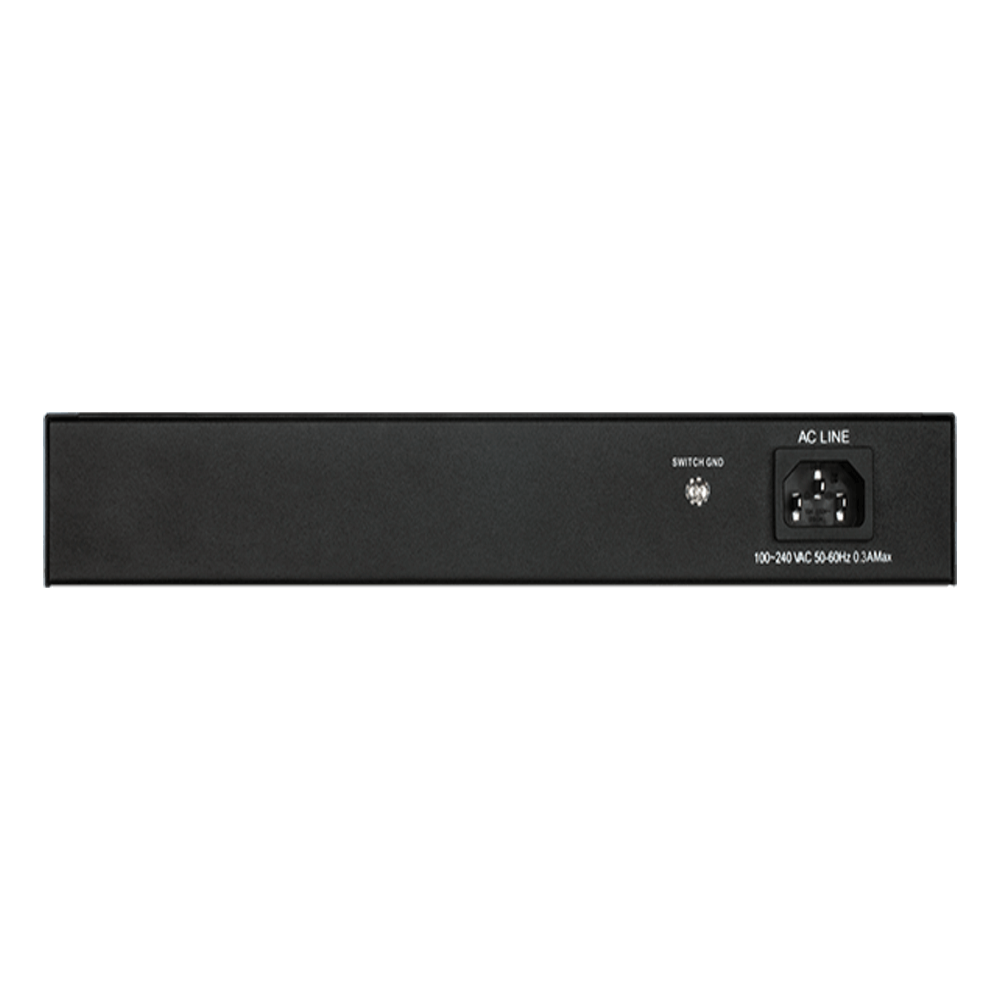

| Power Input | AC 100–240V |
| Maximum Power Consumption | 9.3W |
| Standby Power Consumption | 4.48W |
| Maximum Heat Dissipation | 33.554 BTU/h |
| MTBF | 208,124 hours |
| Dimensions | 282.2 x 178 x 44.5 mm (11.11 x 7.01 x 1.75 in) |
| Weight | 1.06 kg |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity | 10% to 90% RH |
| Storage Humidity | 5% to 95% RH |
| RoHS Compliance | Yes (RoHS 6) |
Best Suited For
- Small offices upgrading from Fast Ethernet, gaining Gigabit speed across every port at once
- Workgroups handling large file transfers or media streaming, benefiting from the full 2000Mbps duplex speed
- Businesses wanting energy-efficient networking, thanks to automatic power savings based on link status and cable length
