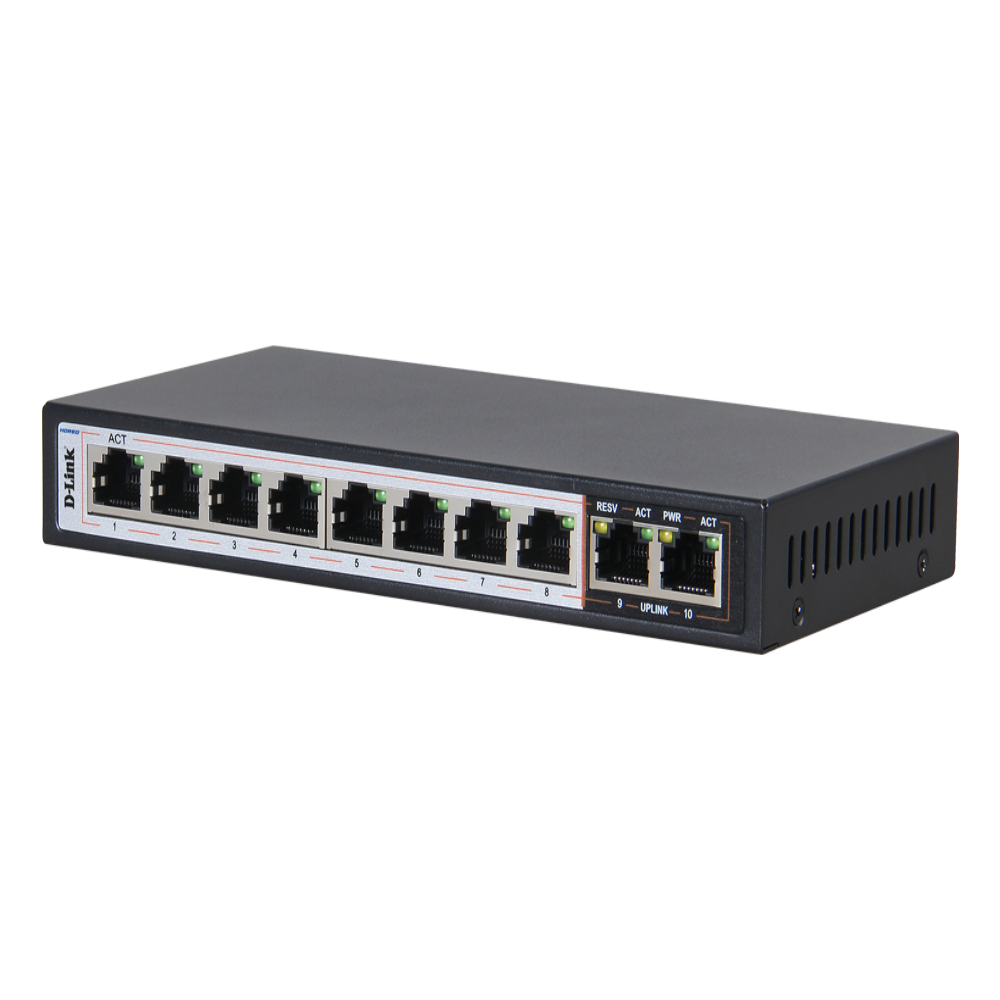

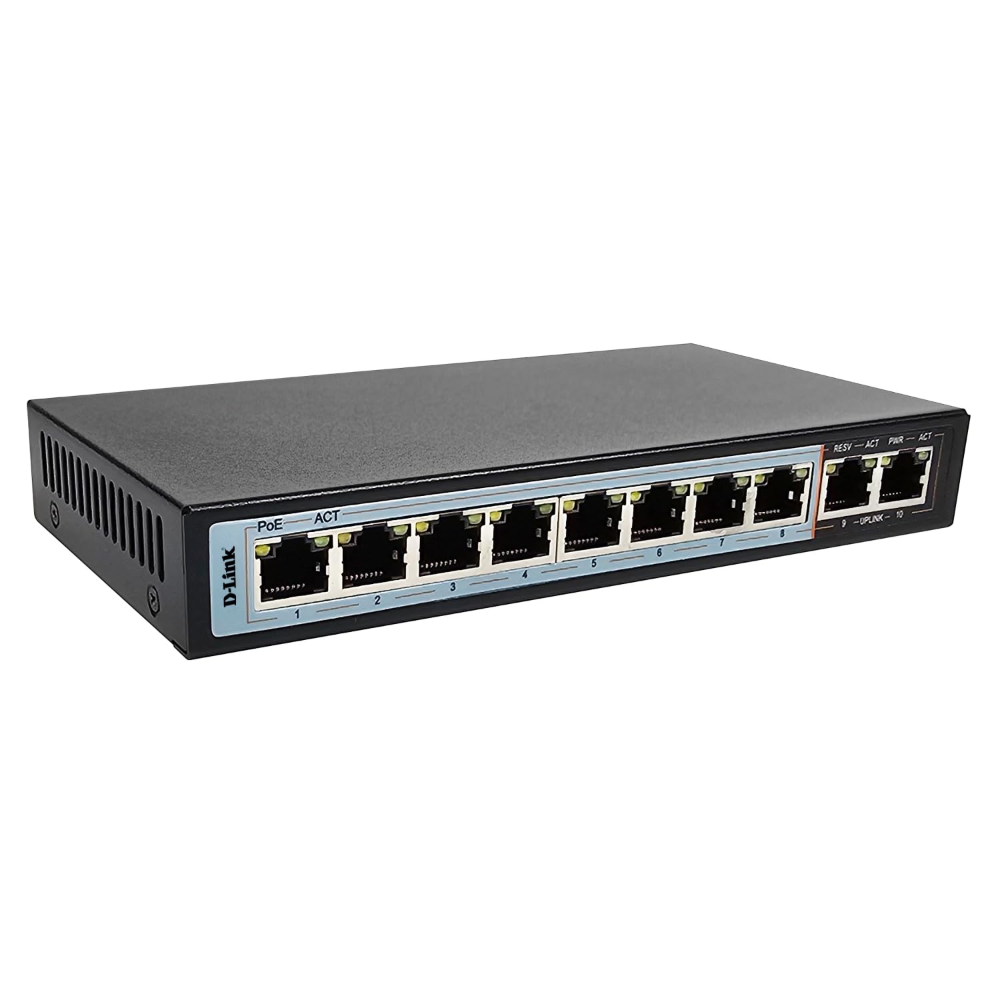

D-Link DES-F1010P-E/B 10-Port Long Range PoE Switch
The D-Link DES-F1010P-E is a 10-port Fast Ethernet PoE+ switch purpose-built for IP surveillance and small business networks that need to power devices well beyond the usual 100-metre Ethernet limit. It provides 8 x 10/100Mbps PoE ports and 2 x 10/100Mbps uplink ports, supporting both IEEE 802.3af and 802.3at PoE standards. A dedicated Extend mode stretches power and data delivery out to 250 metres on a single cable run — ideal for outdoor cameras or access points mounted far from the switch. The unit is fanless with a durable metal housing for silent, reliable operation, includes 6kV lightning/surge protection to guard against electrical damage, and requires no configuration for straightforward plug-and-play setup.
Key Features
- 8 PoE+ ports supporting 802.3af/at, with a 96W total power budget for cameras, APs, and VoIP phones
- Extend mode for 250-metre reach, well beyond standard 100m Ethernet PoE limits
- 6kV lightning/surge protection, safeguarding the switch against electrical damage
- Fanless metal housing, ensuring silent, durable operation
- Plug-and-play setup, requiring no configuration for immediate use
Technical Specifications
| Specification | Detail |
|---|---|
| Model | DES-F1010P-E/B |
| PoE Ports | 8 x 10/100Mbps (ports 1–8) |
| Uplink Ports | 2 x 10/100Mbps (ports 9–10) |
| PoE Standards | IEEE 802.3af / 802.3at |
| Total PoE Power Budget | 96W |
| Long-Range Mode | Up to 250m (Extend mode) |
| Switching Bandwidth | 2 Gbps (non-blocking) |
| Network Delay | Max 20μs (100 to 100Mbps, 64-byte packet) |
| Frame Filtering/Forwarding Rate | 14,800 pps (10M); 148,800 pps (100M) |
| Flow Control | IEEE 802.3x |
| Auto MDI/MDIX | Yes |
| Lightning Protection | 6kV |
| Housing | Fanless metal |
| Cable Type | Cat5 or above recommended |
| Standards | IEEE 802.3i (10BASE-T), 802.3u (100BASE-TX), 802.3af/at (PoE) |
Best Suited For
- IP surveillance installations, powering cameras mounted well outside standard 100m Ethernet range
- Outdoor wireless access point deployments, where devices sit far from the nearest power outlet
- Small businesses expanding PoE coverage, without needing separate power injectors for distant devices
