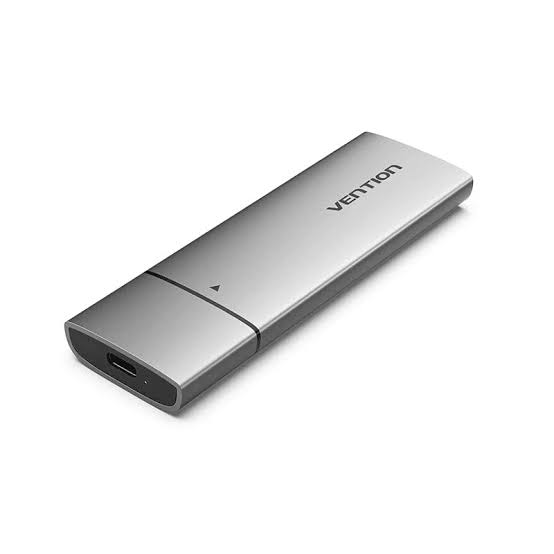

Vention M.2 NGFF SSD Enclosure USB 3.1 Gen 2, Gray Aluminum Alloy Type (KPFH0)
The Vention M.2 NGFF SSD Enclosure (KPFH0) houses an M.2 NGFF SATA SSD (B-key or B+M key) inside a USB 3.1 Gen 2 Type-C case, so a bare M.2 SATA drive becomes a portable external drive without needing a separate power supply. It fits 2230, 2242, 2260, and 2280 size SSDs, covering the most common M.2 SATA drive lengths, and transfers data at up to 6Gbps, limited by the SATA III interface itself rather than the USB connection. Because it supports the UASP protocol, it handles multiple read/write commands more efficiently than a basic USB-to-SATA bridge.
Its tool-free installation means a drive slides in without screws, and a blue LED indicator shows power and activity status at a glance. An auto sleep mode kicks in after 5 minutes of inactivity to save power, and the aluminum alloy and ABS shell with nickel-plated connectors helps dissipate heat while resisting corrosion. It ships with a USB-A to USB-C cable (0.25m) and works across Windows, macOS, and Linux on a plug-and-play basis. As a result, it suits anyone repurposing a spare M.2 SATA SSD as portable external storage or a backup drive.
Key Features
In short, this enclosure stands out in five areas:
- Tool-free M.2 NGFF SATA SSD housing, which, in turn, turns a bare 2230/2242/2260/2280 M.2 drive into a portable external SSD
- USB 3.1 Gen 2 Type-C interface, transferring data at up to 6Gbps, the practical limit of the SATA III connection
- UASP protocol support, handling multiple read/write commands more efficiently than a basic USB-to-SATA bridge
- Auto sleep mode after 5 minutes of inactivity, saving power when the drive isn’t in use

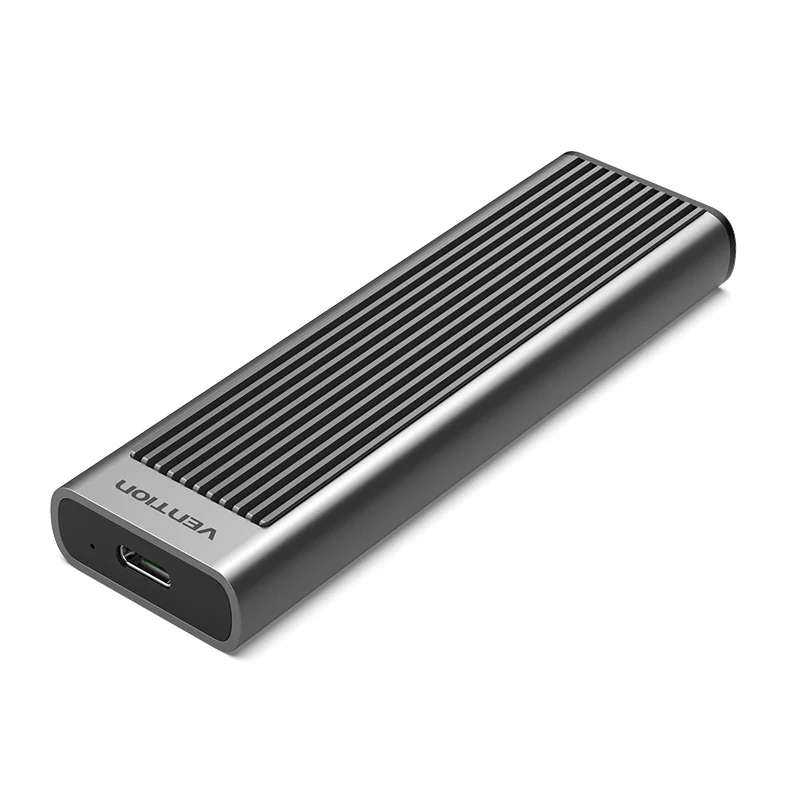

- Aluminum alloy and ABS shell with nickel-plated connectors, aiding heat dissipation while resisting corrosion
Technical Specifications
Specifically, the table below details the core specifications of this enclosure:
| Specification | Details |
|---|---|
| Model | Vention KPFH0 |
| Interface | USB 3.1 Gen 2 Type-C |
| Transmission Speed | Up to 6Gbps |
| SSD Compatibility | M.2 NGFF SATA SSD (B-key / B+M key) |

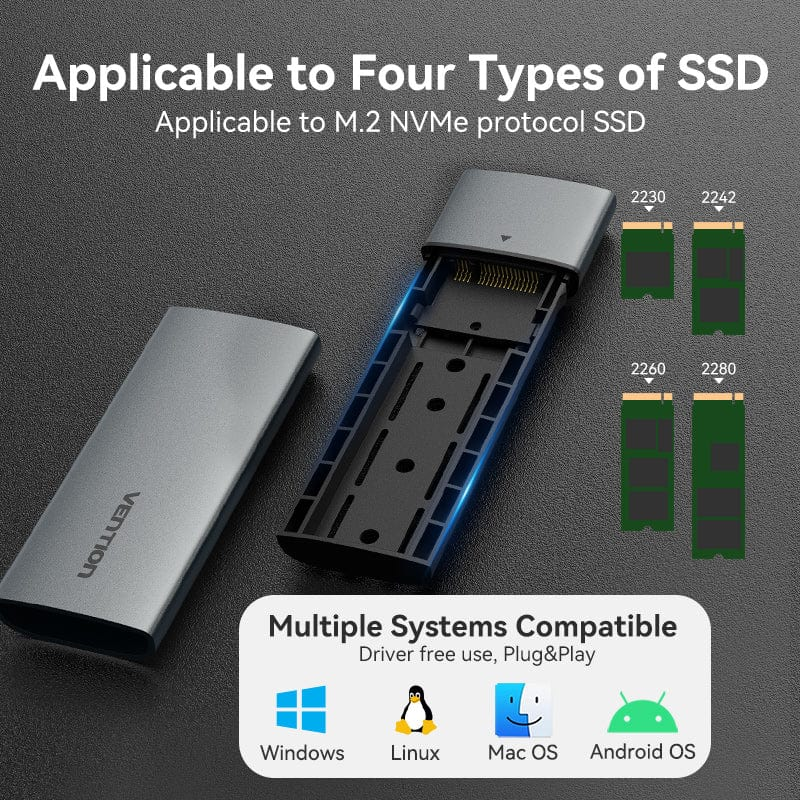

| Supported Sizes | 2230, 2242, 2260, 2280 |
| Protocol Support | UASP |
| Installation | Tool-free |
| Power | Bus-powered (no external power supply) |
| Indicator | Blue LED, power/activity status |
| Sleep Mode | Auto sleep after 5 minutes of inactivity |
| Shell Material | Aluminum alloy + ABS |
| Connector Plating | Nickel-plated |

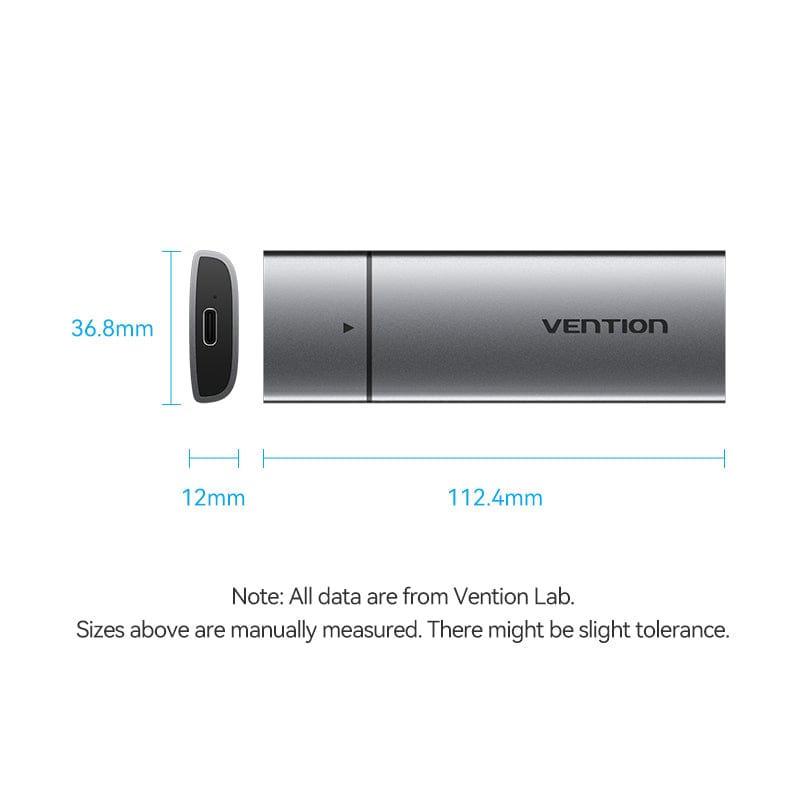

| Dimensions | 112.4 x 36.8mm |
| Included Accessory | USB-A to USB-C cable, 0.25m |
| OS Compatibility | Windows, macOS, Linux |
| Color | Gray |
Who This Enclosure Is Best Suited For
As a result of this combination of specs, three types of users benefit most:
- Anyone repurposing a spare M.2 SATA SSD, since the tool-free enclosure turns a leftover drive into a portable external SSD
- Users needing a quick backup or transfer drive, thanks to UASP support and USB 3.1 Gen 2 speeds up to the SATA III limit
- Laptop upgraders replacing an internal M.2 SATA drive, who can keep using the old SSD externally instead of leaving it unused
