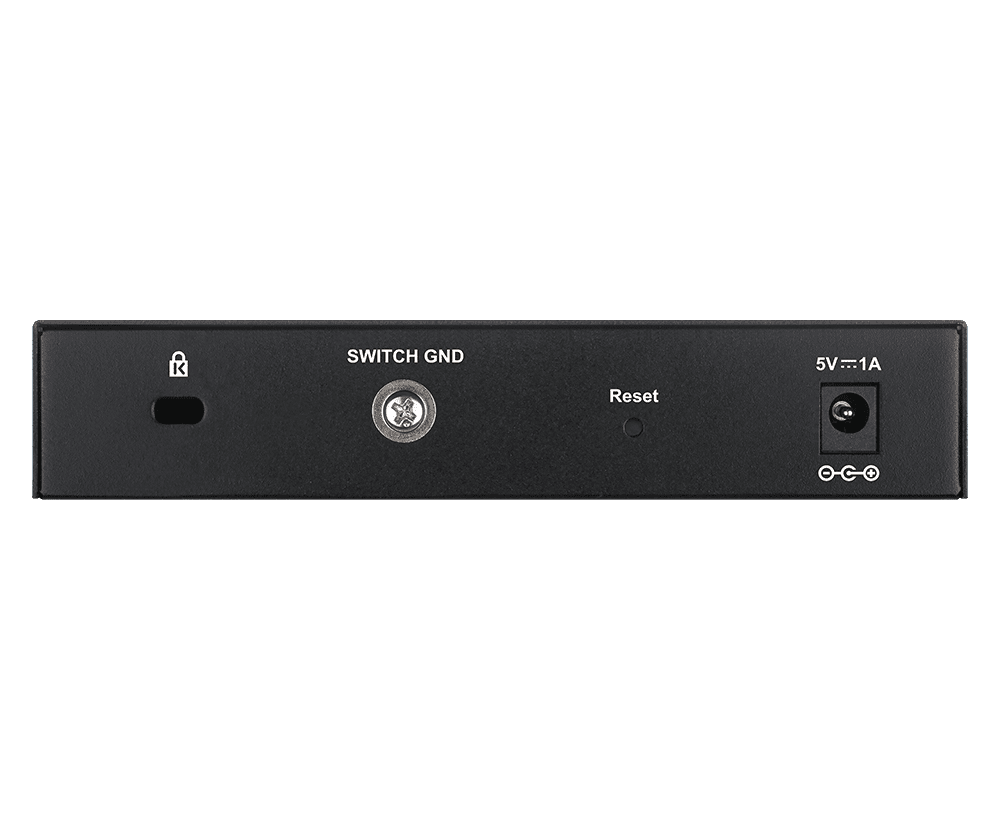

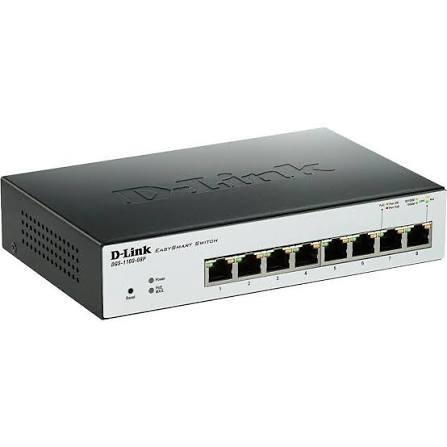

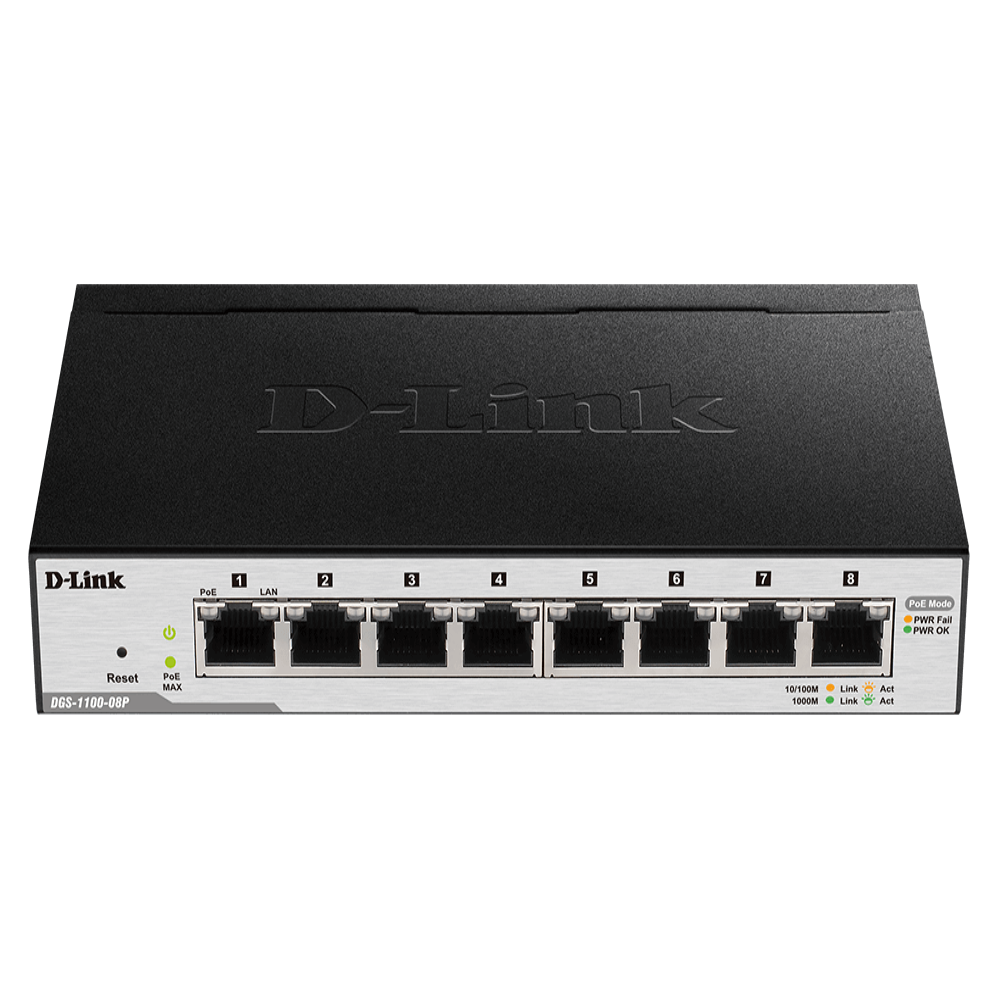

D-Link DGS-1100-08P 8-Port Gigabit PoE Smart Managed Switch
The D-Link DGS-1100-08P is an 8-port Gigabit PoE smart managed switch designed for businesses that need to power network devices directly through the Ethernet cable while still keeping control over traffic. It delivers Power over Ethernet on all 8 ports, with a 64W total PoE power budget, so IP cameras, VoIP phones, and wireless access points run without separate power adapters cluttering the installation. Because it supports the 802.3af PoE standard, it can supply up to 15.4W per port, which comfortably covers most cameras and phones without exceeding the switch’s total power budget. Unlike a purely unmanaged switch, the DGS-1100-08P adds a web-based management interface, giving administrators control over VLANs, QoS, and IGMP snooping. As a result, it suits Kenyan SMEs and installers deploying CCTV systems, since a single device handles both connectivity and power for surveillance cameras across an office, retail shop, or gated compound. Its fanless metal housing further keeps operation silent, which matters in reception areas and smaller offices around Nairobi where noise from cooling fans can be distracting.
Key Features
- 8 x Gigabit PoE ports supporting 802.3af with a 64W total PoE power budget
- Smart managed features — VLAN (802.1Q, port-based, voice, surveillance), QoS, and IGMP snooping (up to 128 groups)
- Fanless metal desktop housing for silent, dust-resistant operation
- 9,216-byte jumbo frame support for handling large data packets without fragmentation
- 11.9 Mpps maximum forwarding rate with a 4,160-entry MAC address table for reliable multi-device performance
Technical Specifications
| Specification | Detail |
|---|---|
| Model Number | DGS-1100-08P |
| Type | Smart Managed |
| Interfaces | 8 x 10/100/1000 Mbps PoE ports, Auto MDI/MDIX |
| PoE Standard | IEEE 802.3af |
| PoE Power Budget | 64 W total |
| Max PoE Output per Port | Up to 15.4 W |
| Flow Control | 802.3x |
| Head-of-Line (HOL) Blocking Prevention | Yes |
| Forwarding Method | Store-and-forward |
| Maximum Forwarding Rate | 11.9 Mpps |
| MAC Address Table Size | 4,160 entries |
| DRAM Size | 48 KB |
| CPU Speed | 62.5 MHz |
| Flash Memory Size | 2 MB |
| Packet Buffer Size | 2 Mbits |
| Jumbo Frame | 9,216 Bytes |
| IGMP Snooping | Max 128 groups |
| VLAN Support | 802.1Q, port-based VLAN, voice VLAN, surveillance VLAN, asymmetric VLAN |
| Energy-Efficient Ethernet (EEE) | Yes |
| RoHS 6 Compliance | Yes |
| Fan | Fanless |
| Acoustic Noise | 0 dB |
| Power Input | AC 100–240V |
| Standby Power Consumption | 2.0 W |
| Maximum Heat Dissipation | 265.85 BTU/hr |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity | 0%–90% RH |
| Storage Humidity | 0%–95% RH |
| Operating Altitude | 2,000 m |
| MTBF | 786,841 hours |
| Dimensions | 171 x 97.8 x 28.6 mm |
Best Suited For
- CCTV and security installers deploying multiple IP cameras that need PoE power and surveillance VLAN prioritization on one device
- Small offices and reception areas running VoIP phones alongside standard PCs, where QoS and voice VLAN keep call quality stable
- IT administrators managing small networks who need VLAN segmentation and IGMP snooping without the cost of a fully managed enterprise switch
